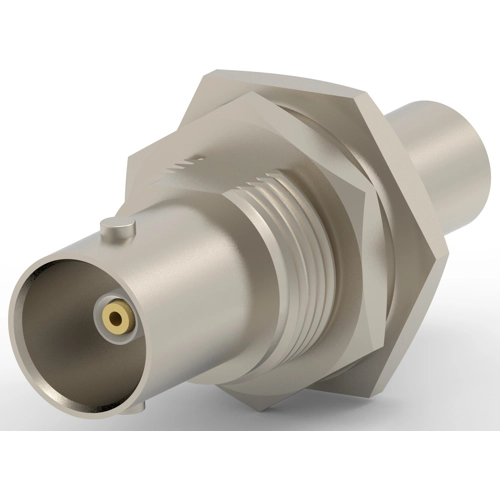

RF Connector, 5-1634516-1, TE Connectivity
RF Interface: BNC, RF Connector Style: Jack, Compatible With RF Cable Type: Belden 9907,KX 15, RG 141A, RG 58C, URM 43, URM 76, Connector System: Cable-to-Panel, Sealable: Yes, Number of Positions: 1, Number of Coaxial Contacts: 1, Impedance: 50 Ω, Body Insulation: With, Cable Connector Orientation: Straight, Body Material: Zinc, Body Material Finish: Plated, Body Plating Material: Nickel, Crimp Type: Hex, RF Connector Center Contact Plating Material: Gold, RF Connector Center Contact Material: Brass, Termination Method to Wire & Cable: Crimp, Panel Mount Feature Type: Hex Nut, RF Connector Coupling Mechanism: Bayonet, Connector Mounting Type: Panel Mount, RF Contact Captivation Method: Mechanical, Detent: With, Panel Cutout: 12 x 12.9mm D-Shape, RF Connector Mated Outer Diameter (Approximate): 14.53 mm, Operating Temperature Range: -55 – 85 °C, Operating Frequency: 4 GHz, Packaging Method: Single Pack, Additional Features: Hardware Included, Dielectric Material: Polyphthalamide
