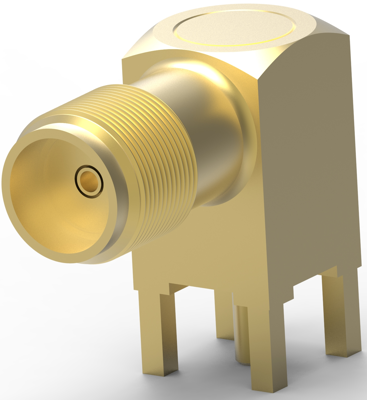

RF Connector, 3-1478978-1, TE Connectivity
Connector Product Type: Connector Assembly, RF Interface: SMA, RF Connector Style: Receptacle, Connector System: Cable-to-Board, Sealable: No, Number of Positions: 1, PCB Mount Orientation: Right Angle, Number of Coaxial Contacts: 1, Impedance: 50 Ω, Body Material: Brass, Body Plating Material: Gold, RF Connector Center Contact Underplating Material: Copper, RF Connector Center Contact Plating Material: Gold, RF Connector Center Contact Material: Phosphor Bronze, Termination Method to Printed Circuit Board: Through Hole - Solder, Termination Post & Tail Length: 3.4 mm, RF Connector Coupling Mechanism: Screw, Connector Mounting Type: Board Mount, RF Contact Captivation Method: Mechanical, Detent: Without, Product Length: 13.5 mm, RF Connector Mated Outer Diameter (Approximate): 6.35 mm, Height Above PC Board: 10.1 mm, Operating Temperature Range: -65 – 165 °C, Operating Frequency: 6 GHz, Packaging Quantity: 30, Packaging Method: Bag, Grade: Commercial, Dielectric Material: Delrin
