2-5329444-2 | TE Connectivity

BNC plug 50 Ω, RG-223, RG-55, RG-55A, RG-55B, crimp connection, straight, 2-5329444-2

Order No.: 71P6854
EAN: 4099891615697
MPN:
2-5329444-2

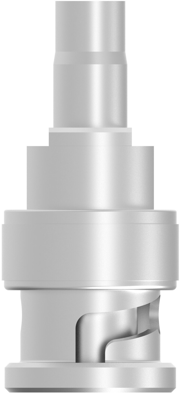

2-5329444-2 TE Connectivity Coaxial Connectors Image 1

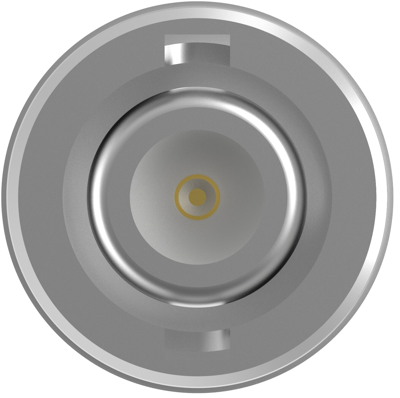

2-5329444-2 TE Connectivity Coaxial Connectors Image 2

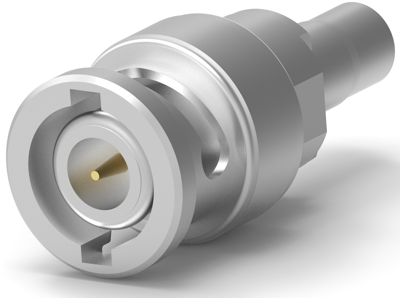

2-5329444-2 TE Connectivity Coaxial Connectors Image 3

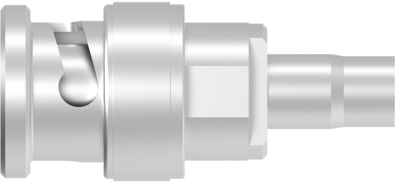

2-5329444-2 TE Connectivity Coaxial Connectors Image 4

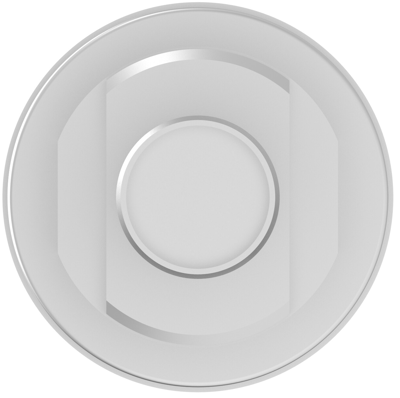

2-5329444-2 TE Connectivity Coaxial Connectors Image 5
Image may differ
Unit Price (€ / pc.)
27.1677 € *
Available in 5 Days: 107 pcs. - if ordered today
Total Price:
217.34 € *
Price list
Quantity
Price per unit*
8 pcs.
27.1677 €
17 pcs.
26.6798 €
*incl. VAT plus shipping costs
Subject to prior sale

BNC plug, 2-5329444-2, TE Connectivity

The 2-5329444-2 provides highly reliable, quick connect/disconnect coaxial connections. Exclusive single and O crimp terminations allow positive insulation grip and require no soldering, providing terminations at a very low overall applied cost.

Features

  • Low VSWR
  • Twist-on connectors require no special tooling for application to the cable
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector BNC
Cable Group RG-223, RG-55, RG-55A, RG-55B
Design straight
Contact material brass
Contact connection crimp connection
Version plug
Logistics
Property Value
Customs tariff number 85366990
Country of origin MX
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
