1-1634622-0 | TE Connectivity

BNC socket 75 Ω, RG coax, solder connection, angled, 1-1634622-0

Order No.: 36P6678
EAN: 4099889828306
MPN:
1-1634622-0
Series: BNC
1-1634622-0 TE Connectivity Coaxial Connectors

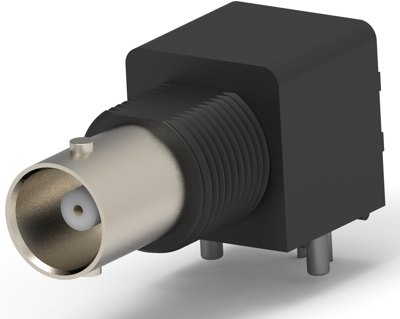

Image may differ
Unit Price (€ / pc.)
3.6295 € *
Available: 0 pcs.
Available in 5 Days: 4,702 pcs.
Leadtime: 11 Weeks **
Total Price:
199.62 € *
Price list
Quantity
Price per unit*
55 pcs.
3.6295 €
150 pcs.
3.4867 €
*incl. VAT plus shipping costs
**Subject to prior sale

RF Connector, 1-1634622-0, TE Connectivity

RF Interface: BNC, RF Connector Style: Jack, Compatible With RF Cable Type: RG Coax Cable, Connector System: Cable-to-Board,Cable-to-Panel, Sealable: No, Number of Positions: 1, PCB Mount Orientation: Right Angle, Number of Coaxial Contacts: 1, EMI & RFI Protection Type: Isolated Ground, Impedance: 75 Ω, Body Insulation: With, Body Material: Zinc, Body Plating Material: Nickel, RF Connector Center Contact Underplating Material: Copper,Nickel, RF Connector Center Contact Plating Material: Gold, RF Connector Center Contact Material: Brass, Termination Method to Printed Circuit Board: Through Hole - Solder, Termination Post & Tail Length: 4.9 mm, PCB Mount Retention: With, RF Connector Coupling Mechanism: Bayonet, Connector Mounting Type: Panel Mount, RF Contact Captivation Method: Mechanical, Detent: With, Housing Color: Black, PCB Thickness (Recommended): 3.3 mm, RF Connector Mated Outer Diameter (Approximate): 14.529 mm, Height Above PC Board: 15.8 mm, Operating Temperature Range: -55 – 85 °C, Operating Frequency: 2 GHz, Packaging Method: Box, Grade: Commercial, Dielectric Material: Polyethylene

Technical specifications
Impedance 75 Ω
Connector BNC
Cable Group RG Koax
Design abgewinkelt
Contact material Messing
Contact connection Lötanschluss
Version Buchse
Logistics
Country of origin CH
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
