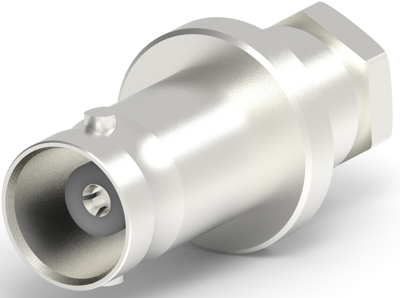

RF Connector, 1-1478409-0, TE Connectivity
RF Interface: BNC, RF Connector Style: Jack, Compatible With RF Cable Type: Raychem 5021D1331, Raychem 5021D1831, Raychem 5021M1631, Raychem EPD 71169Q, RG 188A, RG 316, RG 58C, URM 95, Connector System: Cable-to-Cable, Sealable: Yes, Number of Positions: 1, Number of Coaxial Contacts: 1, Impedance: 50 Ω, Cable Connector Orientation: Straight, Body Material: Brass, Body Plating Material: Silver, RF Connector Center Contact Plating Material: Silver, RF Connector Center Contact Material: Brass, Termination Method to Wire & Cable: Solder & Clamp, Mating Retention Type: Push On, RF Connector Coupling Mechanism: Bayonet, RF Contact Captivation Method: Mechanical, Detent: With, RF Connector Mated Outer Diameter (Approximate): 14.53 mm, Operating Temperature Range: -65 – 165 °C, Operating Frequency: 4 GHz, Packaging Quantity: 50, Packaging Method: Bag, Gasket Material: Silicone Rubber, Dielectric Material: PTFE
