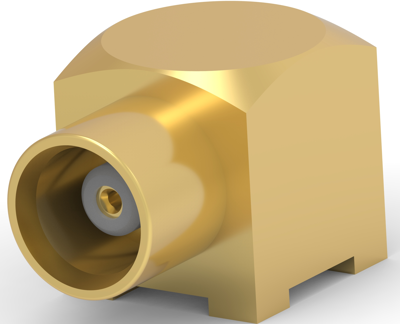

RF Connector, 1-1337583-0, TE Connectivity
RF Interface: MCX, RF Connector Style: Jack, Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 1, PCB Mount Orientation: Right Angle, Number of Coaxial Contacts: 1, Impedance: 50 Ω, Body Shape: Square, Body Material: Brass, Body Material Finish: Plated, Body Plating Material: Gold, RF Connector Center Contact Plating Material: Gold, RF Connector Center Contact Material: Beryllium Copper, Termination Method to Printed Circuit Board: Surface Mount, PCB Mount Retention: Without, RF Connector Coupling Mechanism: Snap-On, Connector Mounting Type: Board Mount, Detent: Without, Height Above PC Board: 5.7 mm, Operating Temperature Range: -40 – 85 °C,-40 – 85 °C, Operating Frequency: 6 GHz, Packaging Method: Tape & Reel, Grade: Professional, Dielectric Material: PTFE
