1-1337552-0 | TE Connectivity

FME socket 50 Ω, RG-58C, RG-76, RG-141A, Belden 9907, KX-15, URM-43, crimp connection, straight, 1-1337552-0

Order No.: 37P2232
EAN: 4099889829525
MPN:
1-1337552-0
Series: FME

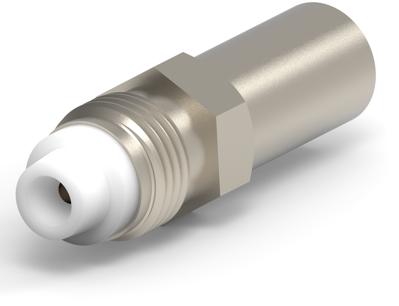

1-1337552-0 TE Connectivity Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
3.6176 € *
Available in 5 Days: 1,048 pcs. - if ordered today
Total Price:
3.62 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6176 €
10 pcs.
3.3558 €
25 pcs.
3.1297 €
50 pcs.
2.8441 €
*incl. VAT plus shipping costs
Subject to prior sale

RF Connector, 1-1337552-0, TE Connectivity

RF Interface: FME, RF Connector Style: Jack, Compatible With RF Cable Type: Belden 9907, KX 15, RG 141A, RG 58C, RG 76, URM 43, Connector System: Cable-to-Cable, Sealable: No, Number of Positions: 1, Number of Coaxial Contacts: 1, Impedance: 50 Ω, Cable Connector Orientation: Straight, Body Material: Brass, Body Plating Material: Nickel, RF Connector Center Contact Plating Material: Gold, RF Connector Center Contact Material: Brass, Termination Method to Wire & Cable: Crimp, Mating Retention Type: Threaded, RF Connector Coupling Mechanism: Threaded, RF Contact Captivation Method: Mechanical, Detent: Without, RF Connector Mated Outer Diameter (Approximate): 6.4 mm, Operating Temperature Range: -55 – 85 °C, Operating Frequency: 2 GHz, Packaging Quantity: 50, Packaging Method: Box, Coupling Nut Base Material: Brass, Dielectric Material: PTFE

Technical specifications
Filter Property Value
Impedance 50 Ω
Connector FME
Cable Group RG-58C, RG-76, RG-141A, Belden 9907, KX-15, URM-43
Design straight
Contact material brass
Contact connection crimp connection
Version socket
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366910
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
