1-1337551-0 | TE Connectivity

FME socket 50 Ω, KX-22A, KX-3B, RG-174A, RG-188A, RG-316, URM-95, crimp connection, straight, 1-1337551-0

Order No.: 37P2231
EAN: 4099889829518
MPN:
1-1337551-0
Series: FME
1-1337551-0 TE Connectivity Coaxial Connectors

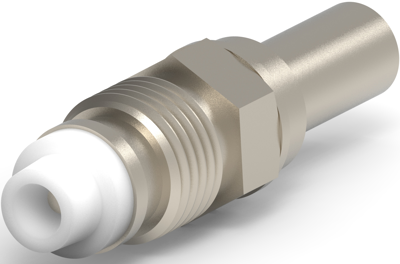

Image may differ
Unit Price (€ / pc.)
4.0460 € *
Available in 5 Days: 1,454 pcs. - if ordered today
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0460 €
10 pcs.
3.7604 €
25 pcs.
3.5105 €
50 pcs.
3.1892 €
*incl. VAT plus shipping costs
Subject to prior sale

RF Connector, 1-1337551-0, TE Connectivity

RF Interface: FME, RF Connector Style: Jack, Compatible With RF Cable Type: KX 22A, KX 3B, RG 174A, RG 188A, RG 316, Connector System: Cable-to-Cable, Sealable: No, Number of Positions: 1, Number of Coaxial Contacts: 1, Impedance: 50 Ω, Cable Connector Orientation: Straight, Body Material: Brass, Body Plating Material: Nickel, RF Connector Center Contact Plating Material: Gold, RF Connector Center Contact Material: Brass, Termination Method to Wire & Cable: Crimp, RF Connector Coupling Mechanism: Threaded, RF Contact Captivation Method: Mechanical, Detent: Without, Operating Temperature Range: -55 – 85 °C, Operating Frequency: 2 GHz, Packaging Quantity: 50, Packaging Method: Box, Coupling Nut Base Material: Brass, Dielectric Material: Delrin

Technical specifications
Filter Property Value
Impedance 50 Ω
Connector FME
Cable Group KX-22A, KX-3B, RG-174A, RG-188A, RG-316, URM-95
Design straight
Contact material brass
Contact connection crimp connection
Version socket
Logistics
Property Value
Customs tariff number 85369010
Country of origin CZ
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
