1-1337446-0 | TE Connectivity

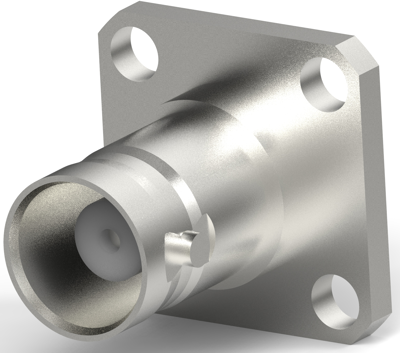

BNC flange socket 50 Ω, solder connection, straight, 1-1337446-0

Order No.: 37P2172
EAN: 4099889829181
MPN:
1-1337446-0
Series: BNC
1-1337446-0 TE Connectivity Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
6.6640 € *
Available in 5 Days: 870 pcs. - if ordered today
Total Price:
6.66 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6640 €
5 pcs.
6.3189 €
10 pcs.
5.9143 €
25 pcs.
5.3907 €
*incl. VAT plus shipping costs
Subject to prior sale

RF Connector, 1-1337446-0, TE Connectivity

RF Interface: BNC, RF Connector Style: Jack, Connector System: Cable-to-Cable, Sealable: No, Number of Positions: 1, Number of Coaxial Contacts: 1, Impedance: 50 Ω,75 Ω, Body Insulation: With, Body Material: Brass, Body Material Finish: Plated, Body Plating Material: Silver, RF Connector Center Contact Plating Material: Silver, RF Connector Center Contact Material: Brass, Termination Method to Wire & Cable: Solder Terminal, Panel Mount Feature Type: Flange, RF Connector Coupling Mechanism: Bayonet, Connector Mounting Type: Panel Mount, Detent: With, Panel Cutout: 1 x 12.0 + 4 x 3.2 Rear Mount, 1 x 9.0 + 4 x 3.2 Front Mount, RF Connector Mated Outer Diameter (Approximate): 14.53 mm, Operating Temperature Range: -40 – 85 °C, Operating Frequency: 4 GHz, Packaging Quantity: 50, Packaging Method: Box, Grade: Professional, Dielectric Material: PTFE

Technical specifications
Filter Property Value
Contact connection solder connection
Design straight
Product type flange socket
Contact material brass
Connector BNC
Impedance 50 Ω
Logistics
Property Value
Country of origin DE
Customs tariff number 85366910
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
