1-1337417-0 | TE Connectivity

N panel socket 50 Ω, solder connection, straight, 1-1337417-0

Order No.: 37P2243
EAN: 4099889829549
MPN:
1-1337417-0
Series: N
1-1337417-0 TE Connectivity Coaxial Connectors

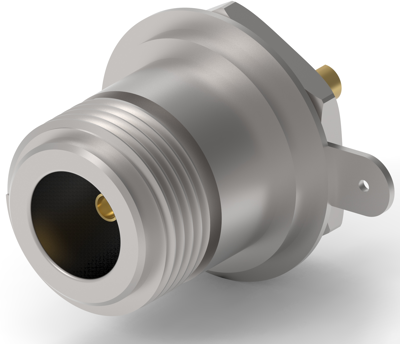

Image may differ
Unit Price (€ / pc.)
14.6489 € *
Available: 3 pcs.
Available in 5 Days: 504 pcs. - if ordered today
Total Price:
14.65 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6489 €
5 pcs.
13.8873 €
10 pcs.
12.9948 €
25 pcs.
11.8524 €
*incl. VAT plus shipping costs
Subject to prior sale

RF Connector, 1-1337417-0, TE Connectivity

RF Interface: N Type, RF Connector Style: Jack, Connector System: Cable-to-Panel, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 1, Number of Coaxial Contacts: 1, Impedance: 50 Ω, Cable Connector Orientation: Straight, Body Material: Brass, Body Plating Material: Silver, RF Connector Contact Configuration: Captivated Contacts, RF Connector Center Contact Plating Material: Silver, RF Connector Center Contact Material: Brass, Termination Method to Wire & Cable: Solder Terminal, Panel Mount Feature Type: Hex Nut, RF Connector Coupling Mechanism: Threaded, Connector Mounting Type: Panel Mount, RF Contact Captivation Method: Mechanical, Detent: Without, Flange Diameter: 19 mm, RF Connector Mated Outer Diameter (Approximate): 19.05 mm, Operating Temperature Range: -65 – 165 °C, Operating Frequency: 11 GHz, Packaging Quantity: 50, Packaging Method: Box, Lockwasher Material: Brass, Dielectric Material: PTFE

Technical specifications
Filter Property Value
Contact connection solder connection
Design straight
Product type panel socket
Contact material brass
Connector N
Impedance 50 Ω
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366910
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
