5414105-1 | TE Connectivity

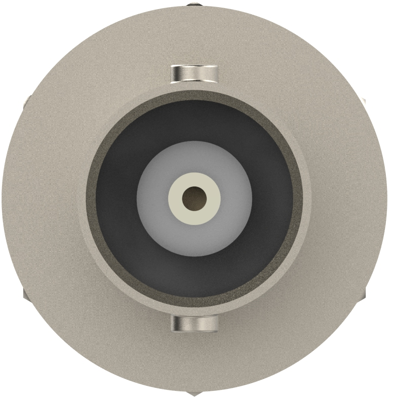

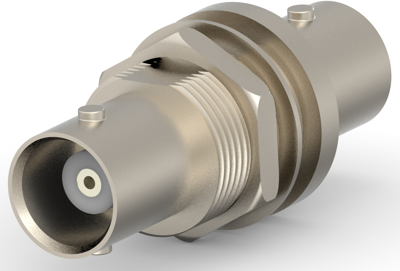

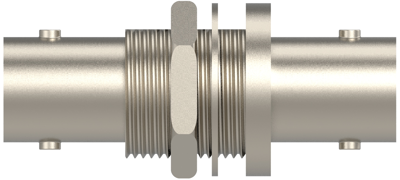

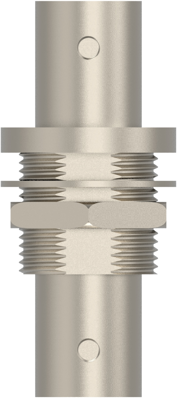

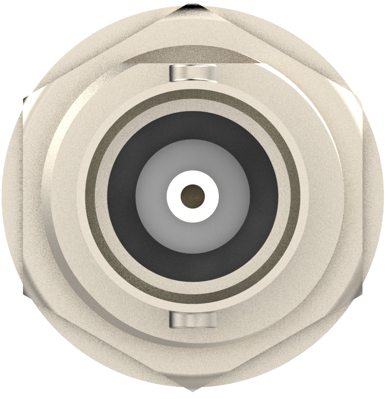

Coaxial adapter, 50 Ω, BNC socket to BNC socket, straight, 5414105-1
Order No.: 36P6578
EAN: 4099889849448
MPN:
5414105-1
In-Series Adapters, 5414105-1, TE Connectivity
Grade: Commercial, RF Connector Type: BNC, Connector System: Cable-to-Cable, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 1, Impedance: 50 Ω, Body Plating Material: Nickel, Body Angle: Straight, RF Connector Center Contact Plating Thickness: , RF Connector Center Contact Material: Phosphor Bronze, RF Connector Center Contact Plating Material: Gold, Panel Mount Feature Type: Bulkhead, Connector Mounting Type: Bulkhead, Operating Temperature Range: -65 – 165 °C, Circuit Application: Power & Signal, Packaging Method: Bag, Dielectric Material: Polymethylpentene
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | BNC socket | |
| Connector (exit) | BNC socket | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
