5-1534796-8 | TE Connectivity
Card connector, 5-1534796-8
Order No.: 71P9439
EAN: 4099891605858
MPN:
5-1534796-8
Unit Price (€ / pc.)
0.4284 € *
Standard delivery time from the manufacturer is: 14 Weeks

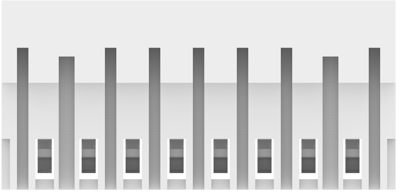

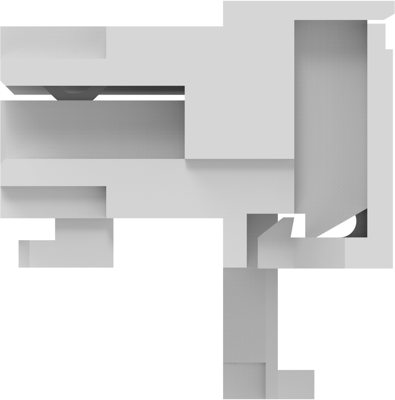

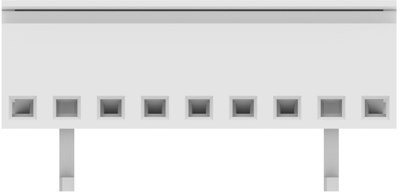

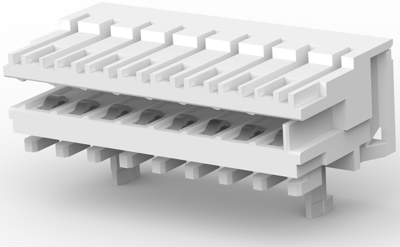

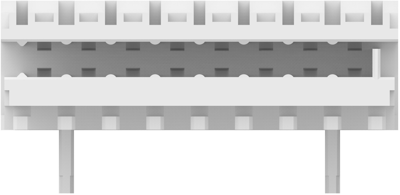

Card connector, 5-1534796-8, TE Connectivity
Standard edge connector, Wire-to-Board, 8 Position, 2.5 mm Centerline, Insulation displacement (IDC), 1 Row, Natural, PA 6 GF, Fully loaded.
Features
- IDC connector system for harness production
- Openings in cover for electrical tests
- Excellent contact protection
Applications
- Household appliances
- Gambling machines
- Consumer electronics
- Telecommunications industry
- Automotive industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Number of rows | 1 | |
| Type of locking | angled | |
| Pin number | 8 pole | |
| Version | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
