2-2013289-1

default S
default L
Total price
(3.63 € * / pcs.)
3.63 €
Available: 363 pcs.
Quantity
Price per piece*
1 pcs.
3.63 €
10 pcs.
3.22 €
50 pcs.
3.00 €
100 pcs.
2.78 €
*incl. VAT plus shipping costs
Description

Product by TE Connectivity at Bürklin Elektronik

Card Connectors, TE Connectivity

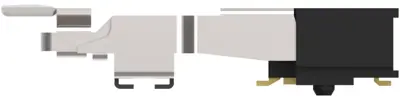

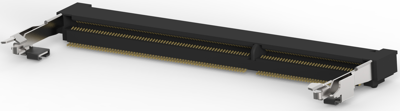

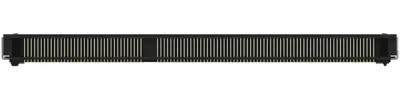

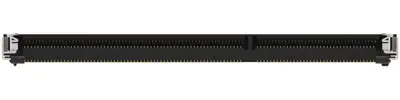

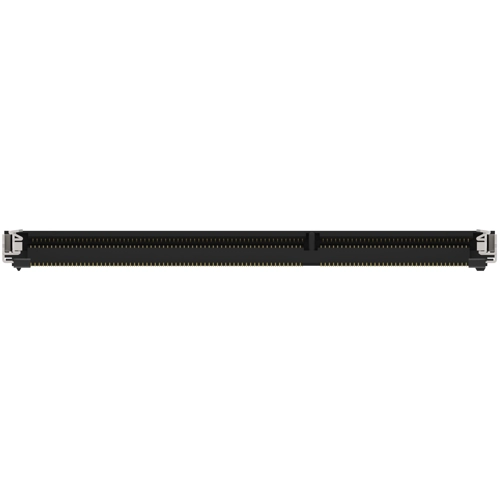

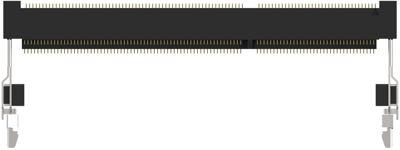

SO DIMM Sockets, 2-2013289-1, TE Connectivity

DRAM Type: Double Data Rate (DDR) 3, Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Product Type: Socket, Center Key: Offset Left, Module Orientation: Right Angle, Number of Positions: 204, Number of Rows: 2, Keying: Standard, DRAM Voltage: 1.5 V, SGRAM Voltage: 1.5 V, Ejector Type: Locking, Connector Profile: Standard, Contact Base Material: Copper Alloy, Contact Mating Area Plating Material: Gold Flash, Contact Current Rating (Max): 0.5 A, Socket Type: Memory Card, Insertion Style: Cam-In, PCB Mount Retention Type: Solder Peg, PCB Mounting Style: Surface Mount, Connector Mounting Type: Board Mount, Centerline (Pitch): 0.6 mm, Housing Color: Black, Stack Height: 5.2 mm, Row-to-Row Spacing: 8.2 mm, Operating Temperature Range: -55 – 85 °C, Circuit Application: Power, UL Flammability Rating: UL 94V-0, Packaging Method: Emboss on Reel, Packaging Quantity: 200, Comment: With floating peg.

Technical specifications
Number of rows 2
Version socket
Pin number 204 pole
Grid 0.6 mm
Connector DDR3 SO DIMM
Type of locking straight
Logistics
Country of origin TW
Customs tariff number 85366930
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Download
Technical Data Sheet - DE
Technical Data Sheet
