TE Connectivity

1932768-1 | TE Connectivity

1932768-1

default S
default L
Total price
(1.17 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per piece*
8000 pcs.
1.17 €
*incl. VAT plus shipping costs
Description

Product by TE Connectivity at Bürklin Elektronik

Card Connectors, TE Connectivity

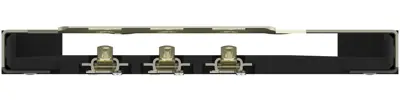

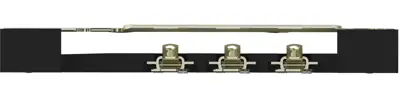

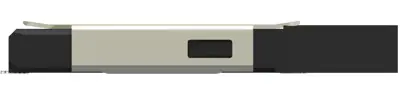

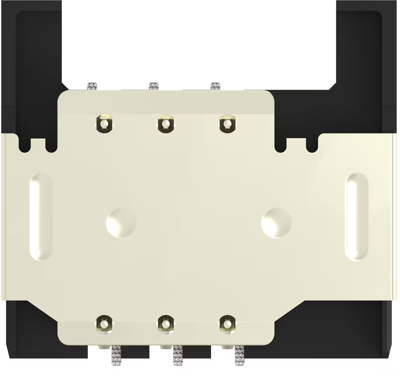

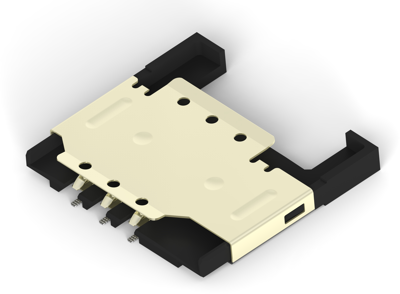

SIM Card Connectors, 1932768-1, TE Connectivity

Module Type: SIM (Security Identity Module), Compatible Card: 2FF mini SIM, Connector & Contact Terminates To: Printed Circuit Board, Product Type: Connector, Card Insertion Style: Normal Insertion, Number of Positions: 6, Number of Loaded Positions: 6, Ejector Type: Push-Pull, Contact Base Material: Selective Gold, Contact Current Rating (Max): 1.2 A, Connector Stabilization Ribs: Without, PCB Mounting Style: Surface Mount, Connector Mounting Type: Board Mount, Contact Retention: No, Centerline (Pitch): 2.54 mm, Housing Color: Black, Height Above PC Board: 2 mm, Operating Temperature Range: -25 – 70 °C, Durability Rating: 5000 Cycles, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Reel,Tape & Reel

Technical specifications
Number of rows 2
Version socket
Pin number 6 pole
Grid 2.54 mm
Connector SIM
Type of locking angled
Logistics
Country of origin US
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Download
Technical Data Sheet - DE
Technical Data Sheet
Technical Data Sheet - EN
Technical Data Sheet
