7-1768048-7 | TE Connectivity

Vinyl cable maker, inscribable, (W x H) 25 x 50 mm, max. bundle Ø 11.1 mm, yellow, 7-1768048-7

Order No.: 14L6526
EAN: 4099891208196
MPN:
7-1768048-7
TKM-50-WS-N
7-1768048-7 TE Connectivity Cable Markers
Image may differ
Unit Price (€ / pck.)
13.4708 € *
Available in 5 Days: 5 pck. - if ordered today
Total Price:
188.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
14 pck.
13.4708 €

Cable tag for labeling, type TE Connectivity/Idento BKM-.

Self-adhesive. PVC, 0.08 mm thickness. The marker consists of a clear adhesive part with a white legend field and clear protective cover for the legend. Labeled with a typewriter, pencil, ball-point pen or copy machine; Properties: thermal resistance from –30 to +120 °C, sustained adhesive strength, resists dirt, water, alcohol, oils on kerosene basis etc.

Handy pocket size package, type TKM-.

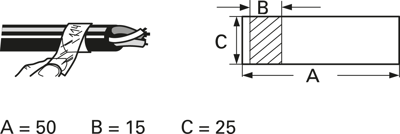

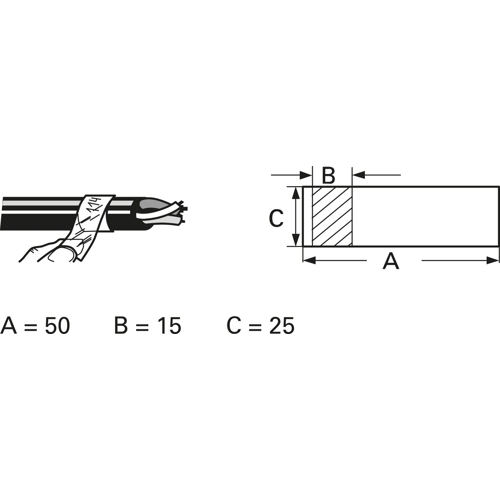

Technical attributes (type, dimensions in mm, number of tags per sheet or pocket size package): 050, A 50, B 15, C 25 mm, 90 tags

Technical specifications
Colour yellow
max. Bundle diameter 11.1 mm
Markable Yes
Width 25 mm
Height 50 mm
Version cable maker
Material vinyl
Logistics
Country of origin DE
Customs tariff number 39199080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
