5-1768016-7 | TE Connectivity
Vinyl cable maker, inscribable, (W x H) 23 x 75 mm, max. bundle Ø 15.9 mm, white, 5-1768016-7
Unit Price (€ / pck.)
4.7600 € *
Next delivery: 32 pck. on 2025-10-10
Total Price:
4.76 € *
Price list
Quantity
Price per unit*
1 pck.
4.7600 €
5 pck.
4.4030 €
10 pck.
4.0460 €
50 pck.
3.8080 €
100 pck.
3.5700 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable tag for labeling, type TE Connectivity/Idento BKM-.
Self-adhesive. PVC, 0.08 mm thickness. The marker consists of a clear adhesive part with a white legend field and clear protective cover for the legend. Labeled with a typewriter, pencil, ball-point pen or copy machine; Properties: thermal resistance from –30 to +120 °C, sustained adhesive strength, resists dirt, water, alcohol, oils on kerosene basis etc.

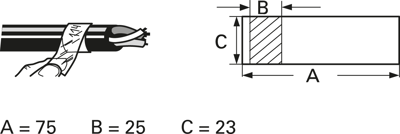

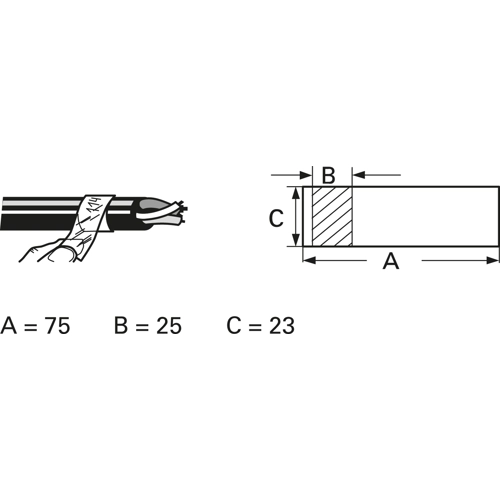

Technical attributes (type, dimensions in mm, number of tags per sheet or pocket size package): 07523, A 75, B 25, C 23 mm, 20 tags
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | white | |
| Material | vinyl | |
| Markable | Yes | |
| max. Bundle diameter | 15.9 mm | |
| Width | 23 mm | |
| Version | cable maker | |
| Height | 75 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Sheet with 20 pieces |
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
