5-1768016-4 | TE Connectivity

PVC cable maker, inscribable, (W x H) 23 x 38 mm, max. bundle Ø 8.9 mm, white, 5-1768016-4

Order No.: 14L6492
EAN: 4099891208127
MPN:
5-1768016-4
BKM-3823-9
Series: BKM
5-1768016-4 TE Connectivity Cable Markers
Image may differ
Unit Price (€ / pck.)
5.4740 € *
Available: 79 pck.
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
1 pck.
5.4740 €
10 pck.
5.0456 €
25 pck.
4.6648 €
50 pck.
4.2364 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable tag for labeling, TE Connectivity/Idento BKM-.

Self-adhesive. PVC, 0.08 mm thickness. The marker consists of a clear adhesive part with a white legend field and clear protective cover for the legend. Labeled with a typewriter, pencil, ball-point pen or copy machine

Properties: thermal resistance from - 30 to +120 °C, sustained adhesive strength, resists dirt, water, alcohol, oils on kerosene basis etc.

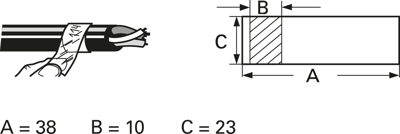

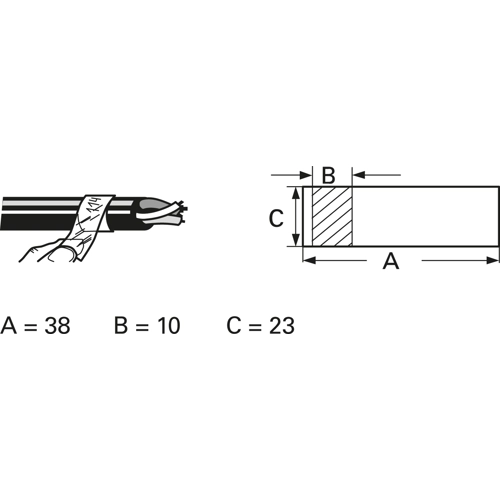

Technical attributes (type, dimensions in mm, number of tags per sheet or pocket size package): 03823, A 38, B 10, C 23 mm, 40 tags

Technical specifications
Filter Property Value
Markable Yes
max. Bundle diameter 8.9 mm
Version cable maker
Width 23 mm
Colour white
Material PVC
Height 38 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 39269097
Original Packaging Sheet with 40 pieces
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
