2-31425-3 | TE Connectivity

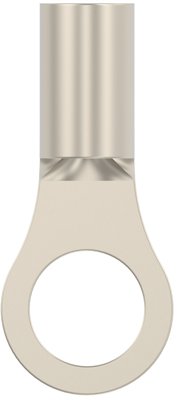

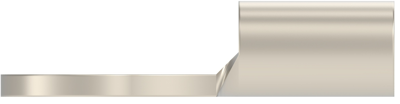

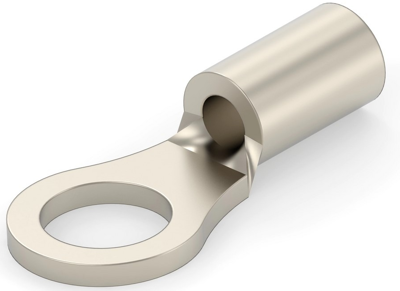

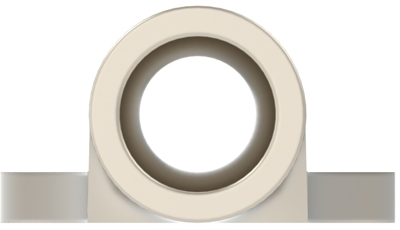

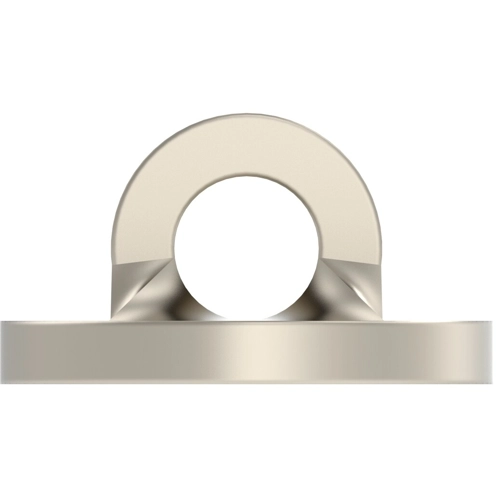

Uninsulated ring cable lug, 0.12-0.4 mm², AWG 26 to 22, 2.36 mm, M2, metal, 2-31425-3
Order No.: 39P8314
EAN: 4099889600681
MPN:
2-31425-3
Unit Price (€ / pc.)
0.6188 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
0.62 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6188 €
10 pcs.
0.5712 €
25 pcs.
0.5355 €
50 pcs.
0.4879 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 2-31425-3, TE Connectivity
Shape Description: RING-049, Ring & Spade Stud Size: #2,M2, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0,136 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 26 – 22 AWG, Wire Size: 0,12 – .4 mm², Wire Size: 202 – 810 CMA, Stud Diameter: 2.36 mm, Tongue Thickness: 0,79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 343 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece, Line: Budget
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| Thread size | M2 | |
| Hole diameter | 2.36 mm | |
| AWG cross-section | AWG 26 to 22 | |
| max. operating temperature | 343 °C | |
| Material | copper, nickel-plated | |
| Version | ring cable lug | |
| Isolated | No | |
| Cable cross-section | 0.12-0.4 mm² | |
| shrinkable tubing | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
