1577964-1 | TE Connectivity

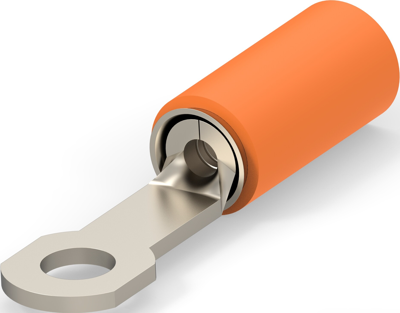

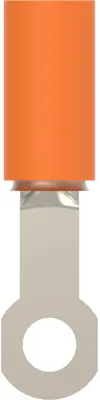

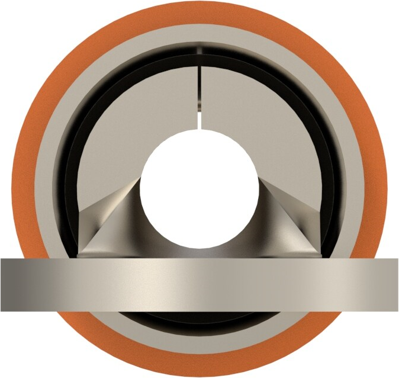

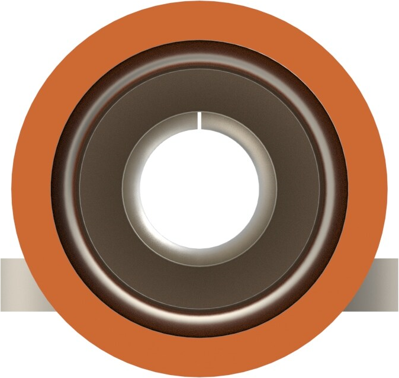

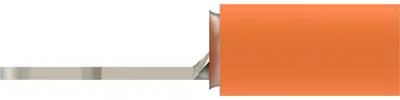

Insulated ring cable lug, 0.823-1.31 mm², AWG 18 to 16, 3 mm, orange, 1577964-1
Order No.: 39P3166
EAN: 4099889591385
MPN:
1577964-1
Unit Price (€ / pc.)
3.7485 € *
Standard delivery time from the manufacturer is: 49 Weeks
Ring cable lug, 1577964-1, TE Connectivity
Ring & Spade Stud Size: #4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Regular Wire, Number of Holes: 1, Terminal Angle: Straight, Current Rating: 1 A, Ring & Spade Plating Material: Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 18 – 16 AWG, Wire Size: 0,823 – 1.31 mm², Stud Diameter: 3.1 mm, Tongue Thickness: 0,79 mm, Ring & Spade Overall Length: 23.65 mm, Operating Temperature Range: 260 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Bag
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18 to 16 | |
| Hole diameter | 3 mm | |
| Colour | orange | |
| Material Insulation | PEEK | |
| max. operating temperature | 260 °C | |
| Cable cross-section | 0.823-1.31 mm² | |
| Material | nickel | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
