1577960-1 | TE Connectivity

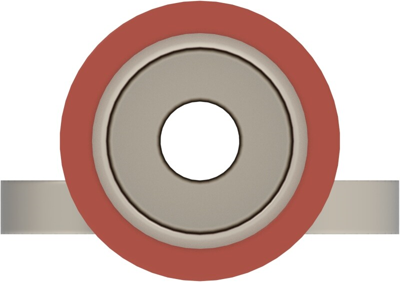

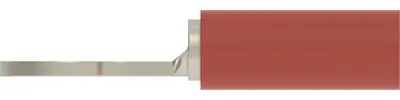

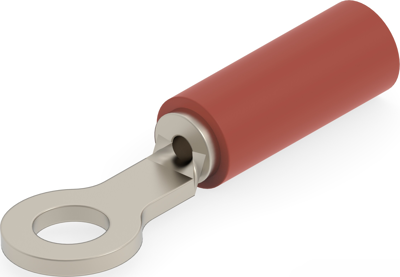

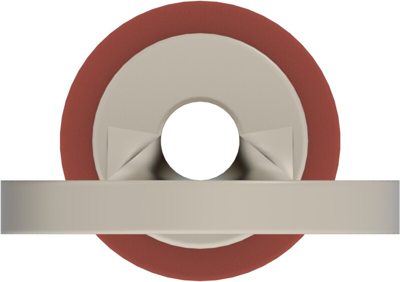

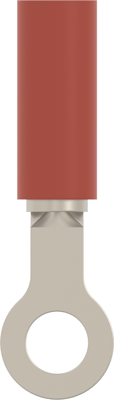

Insulated ring cable lug, 0.205-0.326 mm², AWG 24 to 22, 3.02 mm, brown, 1577960-1
Order No.: 39P3168
EAN: 4099889591408
MPN:
1577960-1
Unit Price (€ / pc.)
2.1777 € *
Standard delivery time from the manufacturer is: 32 Weeks
Cable lug, 1577960-1, TE Connectivity
Ring & Spade Stud Size: #4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Regular Wire, Number of Holes: 1, Terminal Angle: Straight, Current Rating: 1 A, Ring & Spade Plating Material: Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 24 – 22 AWG, Wire Size: 0,205 – .326 mm², Wire Size: 509 CMA, Stud Diameter: 3.02 mm, Tongue Thickness: 0,79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 260 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Bag
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 to 22 | |
| Hole diameter | 3.02 mm | |
| Colour | brown | |
| Material Insulation | PEEK | |
| max. operating temperature | 343 °C | |
| Cable cross-section | 0.205-0.326 mm² | |
| Material | nickel | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
