1577648-1 | TE Connectivity

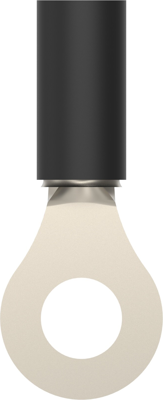

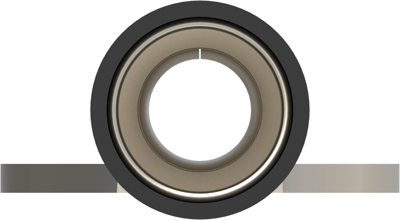

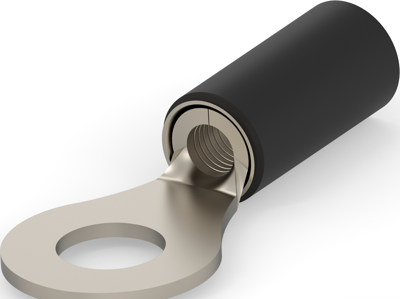

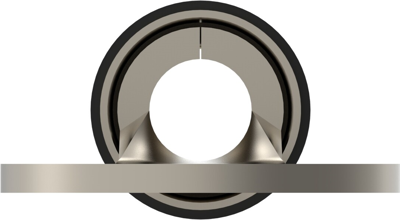

Insulated ring cable lug, 5.26 mm², AWG 10, 6.74 mm, 1/4, black, 1577648-1
Order No.: 39P3144
EAN: 4099889591187
MPN:
1577648-1
Unit Price (€ / pc.)
9.1511 € *
Available in 5 Days: 4,240 pcs. - if ordered today
Total Price:
9.15 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1511 €
10 pcs.
8.4966 €
25 pcs.
7.9373 €
50 pcs.
7.2114 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 1577648-1, TE Connectivity
Ring & Spade Stud Size: 1/4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Regular Wire, Number of Holes: 1, Terminal Angle: Straight, Current Rating: 1 A, Insulation Sleeve Color: Black, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Insulation Diameter (Min): 2.6 mm, Wire Size: 10 AWG, Wire Size: 5.26 mm², Wire Size: 12066 CMA, Stud Diameter: 6.74 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 260 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 250, Ring & Spade Packaging Method: Bag
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Isolated | Yes | |
| AWG cross-section | AWG 10 | |
| Hole diameter | 6.74 mm | |
| Cable cross-section | 5.26 mm² | |
| Version | ring cable lug | |
| Material | copper, nickel-plated | |
| max. operating temperature | 260 °C | |
| Material Insulation | PEEK | |
| Thread size | 1/4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
