1577646-1 | TE Connectivity
Insulated ring cable lug, 5.26 mm², AWG 10, 4.34 mm, M8, black, 1577646-1
Order No.: 39P3142
EAN: 4099889591163
MPN:
1577646-1
Unit Price (€ / pc.)
4.6291 € *
Available in 5 Days: 500 pcs. - if ordered today

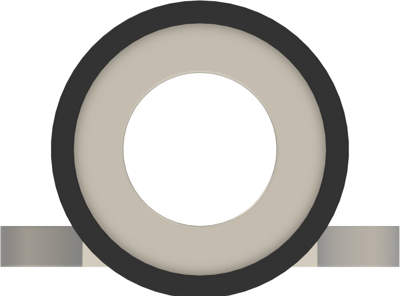

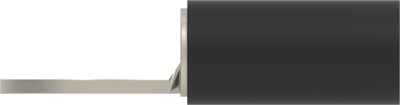

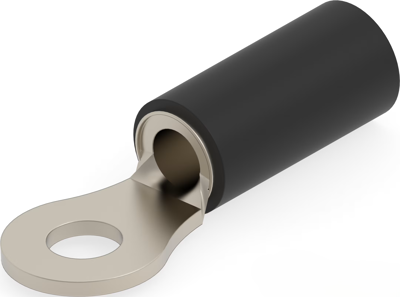

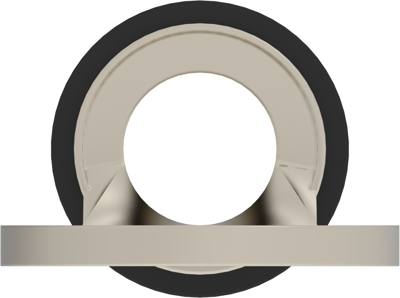

Ring cable lug, 1577646-1, TE Connectivity
Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Regular Wire, Number of Holes: 1, Terminal Angle: Straight, Current Rating: 1 A, Stripe Color: Black, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Insulation Diameter (Min): 2.6 mm, Wire Size: 10 AWG, Wire Size: 5.26 mm², Wire Size: 12066 CMA, Stud Diameter: 4.34 mm, Operating Temperature Range: 260 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 250, Ring & Spade Packaging Method: Bag
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | PEEK | |
| Version | ring cable lug | |
| Hole diameter | 4.34 mm | |
| max. operating temperature | 260 °C | |
| Isolated | Yes | |
| Cable cross-section | 5.26 mm² | |
| Thread size | M8 | |
| Colour | black | |
| Material | copper, nickel-plated | |
| AWG cross-section | AWG 10 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
