1577633-1 | TE Connectivity

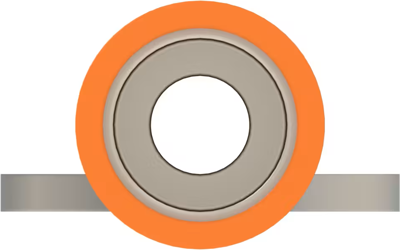

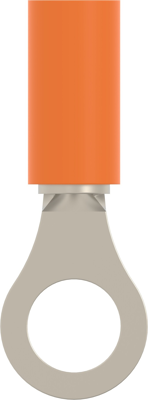

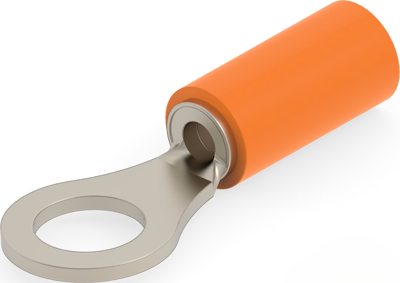

Insulated ring cable lug, 0.823-1.31 mm², AWG 18 to 16, 5 mm, orange, 1577633-1
Order No.: 39P3151
EAN: 4099889591248
MPN:
1577633-1
Unit Price (€ / pc.)
6.4498 € *
Available in 5 Days: 450 pcs. - if ordered today
Total Price:
6.45 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4498 €
10 pcs.
5.9976 €
25 pcs.
5.5930 €
50 pcs.
5.0813 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 1577633-1, TE Connectivity
Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Stranded, Terminal Angle: Straight, Ring & Spade Plating Material: Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 18 – 16 AWG, Wire Size: 0,823 – 1.31 mm², Wire Size: 1600 – 2800 CMA, Stud Diameter: 5 mm, Tongue Thickness: 0,79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 260 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Bag/Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18 to 16 | |
| Hole diameter | 5 mm | |
| Colour | orange | |
| Material Insulation | PEEK | |
| max. operating temperature | 260 °C | |
| Cable cross-section | 0.823-1.31 mm² | |
| Material | nickel | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
