1577632-1 | TE Connectivity

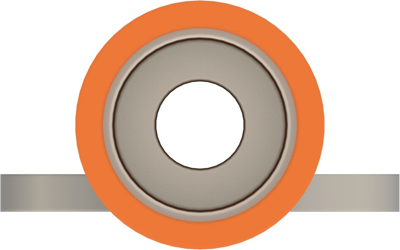

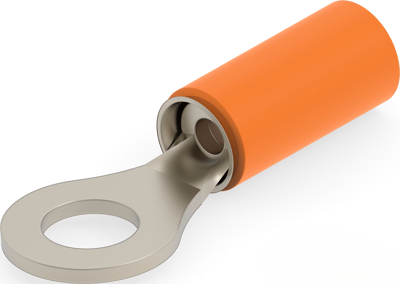

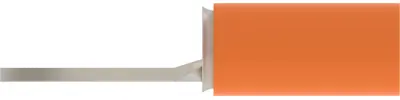

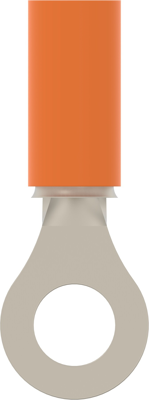

Insulated ring cable lug, 0.823-1.31 mm², AWG 18 to 16, 4.34 mm, orange, 1577632-1
Order No.: 39P3150
EAN: 4099889591231
MPN:
1577632-1
Unit Price (€ / pc.)
3.3201 € *
Available in 5 Days: 1,075 pcs. - if ordered today
Cable lug, 1577632-1, TE Connectivity
Ring & Spade Stud Size: #8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Stranded, Terminal Angle: Straight, Ring & Spade Plating Material: Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 18 – 16 AWG, Wire Size: 0,823 – 1.31 mm², Wire Size: 1600 – 2800 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: 0,79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 260 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Bag/Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18 to 16 | |
| Colour | orange | |
| Material Insulation | PEEK | |
| Isolated | Yes | |
| Cable cross-section | 0.823-1.31 mm² | |
| Material | nickel | |
| max. operating temperature | 260 °C | |
| Version | ring cable lug | |
| Hole diameter | 4.34 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
