1577619-1 | TE Connectivity
Insulated ring cable lug, 0.205-0.326 mm², AWG 24 to 22, 3.68 mm, M3.5, brown, 1577619-1
Order No.: 39P3163
EAN: 4099889591354
MPN:
1577619-1
Unit Price (€ / pc.)
2.1777 € *
Available in 5 Days: 675 pcs. - if ordered today

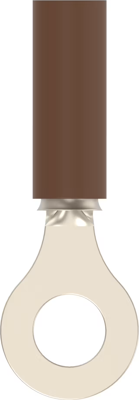

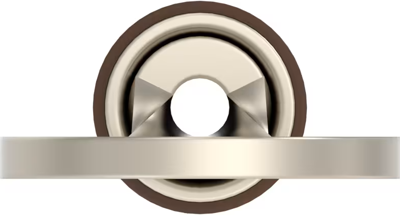

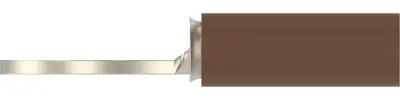

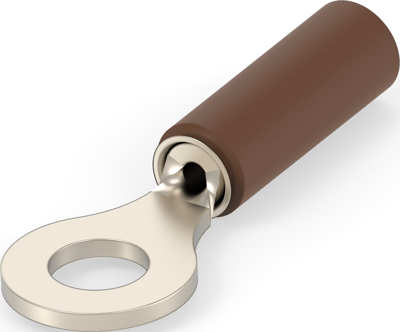

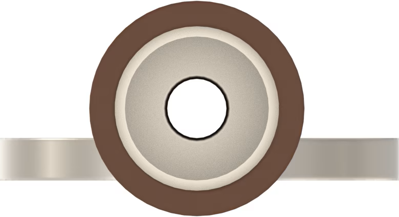

Ring cable lug, 1577619-1, TE Connectivity
Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Stranded, Terminal Angle: Straight, Ring & Spade Plating Material: Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 24 – 22 AWG, Wire Size: 0,205 -0.326 mm², Stud Diameter: 3.68 mm, Tongue Thickness: 0,79 mm, Ring & Spade Overall Length: 21.32 mm, Operating Temperature Range: 260 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Bag/Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | PEEK | |
| Version | ring cable lug | |
| Hole diameter | 3.68 mm | |
| max. operating temperature | 260 °C | |
| Isolated | Yes | |
| Cable cross-section | 0.205-0.326 mm² | |
| Thread size | M3.5 | |
| Colour | brown | |
| Material | nickel | |
| AWG cross-section | AWG 24 to 22 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
