1577616-1 | TE Connectivity

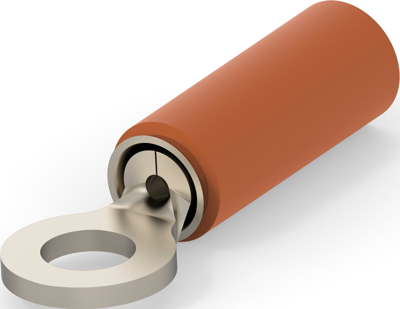

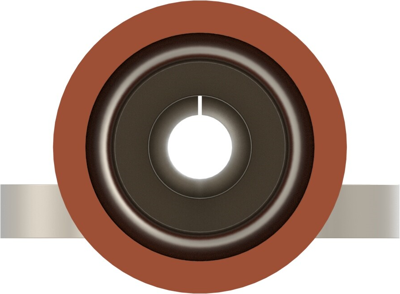

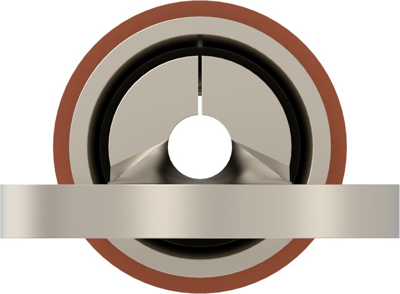

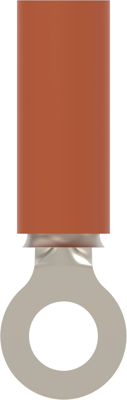

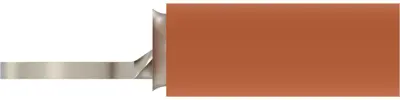

Insulated ring cable lug, 0.2-0.4 mm², AWG 24 to 22, 3.02 mm, M2.5, brown, 1577616-1
Order No.: 39P3153
EAN: 4099889591262
MPN:
1577616-1
Unit Price (€ / pc.)
2.4395 € *
Standard delivery time from the manufacturer is: 42 Weeks
Cable lug, 1577616-1, TE Connectivity
Shape Description: RING-041, Ring & Spade Stud Size: M2.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Current Rating: 1 A, Insulation Sleeve Color: Brown, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 24 – 22 AWG, Wire Size: 0,2 – .4 mm², Stud Diameter: 3.02 mm, Tongue Thickness: 0,79 mm, Ring & Spade Overall Length: 18.01 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 260 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1, Ring & Spade Packaging Method: Package
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Colour | brown | |
| Hole diameter | 3.02 mm | |
| max. operating temperature | 260 °C | |
| Cable cross-section | 0.2-0.4 mm² | |
| Version | ring cable lug | |
| Material | copper, nickel-plated | |
| Material Insulation | PEEK | |
| AWG cross-section | AWG 24 to 22 | |
| Thread size | M2.5 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
