150072-1 | TE Connectivity

Insulated ring cable lug, 0.3-0.9 mm², AWG 22 to 18, 11.51 mm, 7/16, red, 150072-1

Order No.: 39P3356
EAN: 4099889592580
MPN:
150072-1
Series: PIDG

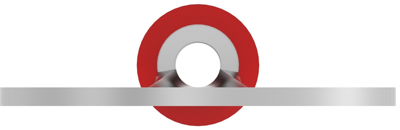

150072-1 TE Connectivity Cable Lugs Image 1

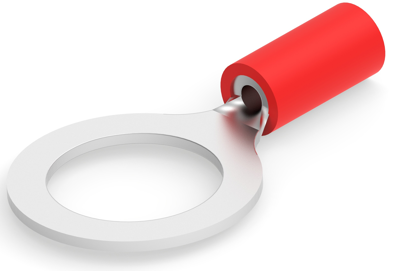

150072-1 TE Connectivity Cable Lugs Image 2

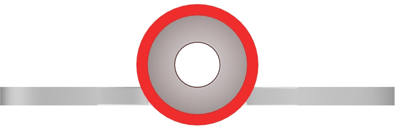

150072-1 TE Connectivity Cable Lugs Image 3

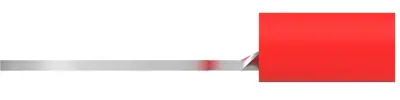

150072-1 TE Connectivity Cable Lugs Image 4

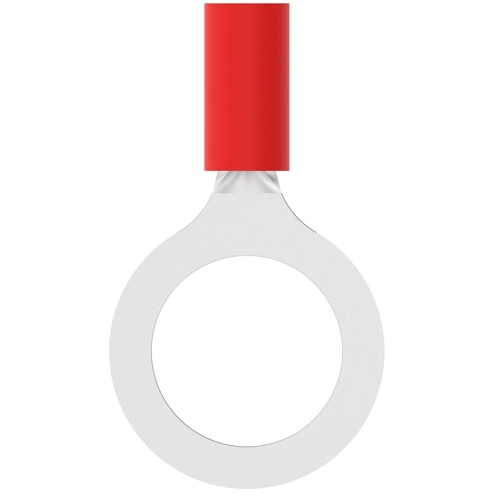

150072-1 TE Connectivity Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
2.5585 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
2.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.5585 €

Cable lug, 150072-1, TE Connectivity

Shape Description: RING-042, Ring & Spade Stud Size: 7/16, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Insulation Sleeve Color: Red, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 22 – 18 AWG, Wire Size: 0,3 – .9 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 11.51 mm, Tongue Thickness: 0,79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Colour red
Isolated Yes
AWG cross-section AWG 22 to 18
Hole diameter 11.51 mm
Cable cross-section 0.3-0.9 mm²
Version ring cable lug
Material copper, tin-plated
max. operating temperature 105 °C
Material Insulation PA
Thread size 7/16
Logistics
Country of origin ES
Customs tariff number 85369040
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
