132104-2 | TE Connectivity
Uninsulated ring cable lug, 34-35 mm², AWG 2, 10 mm, M10, metal, 132104-2
Order No.: 39P8390
EAN: 4099889601145
MPN:
132104-2
Unit Price (€ / pc.)
15.8151 € *
Available in 5 Days: 2,423 pcs. - if ordered today
Total Price:
15.82 € *
Price list
Quantity
Price per unit*
1 pcs.
15.8151 €
10 pcs.
14.6846 €
25 pcs.
13.7088 €
50 pcs.
12.4593 €
*incl. VAT plus shipping costs
Subject to prior sale

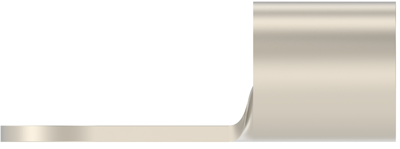

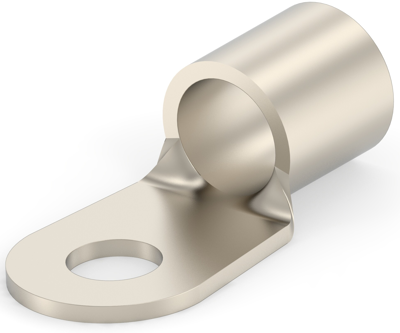

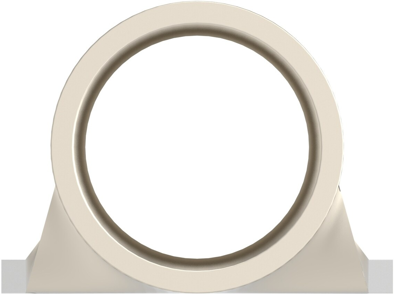

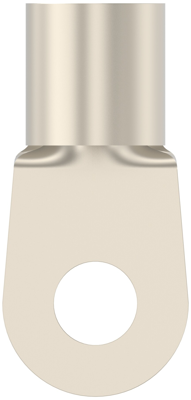

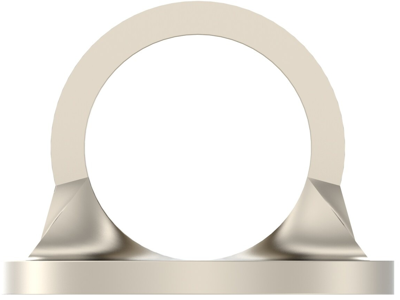

Ring cable lug, 132104-2, TE Connectivity
Shape Description: RING-051, Ring & Spade Stud Size: M10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 2.444 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 2 AWG, Wire Size: 34 – 35 mm², Wire Size: 119500 – 150000 CMA, Stud Diameter: 10 mm,10.5 mm, Tongue Thickness: 0,79 mm, Operating Temperature Range: 343 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 25, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 343 °C | |
| Colour | metal | |
| shrinkable tubing | No | |
| Cable cross-section | 34-35 mm² | |
| AWG cross-section | AWG 2 | |
| Material | copper, nickel-plated | |
| Hole diameter | 10 mm | |
| Isolated | No | |
| Thread size | M10 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
