131648-3 | TE Connectivity

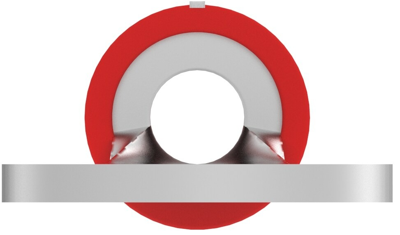

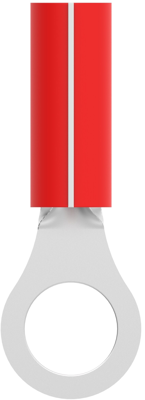

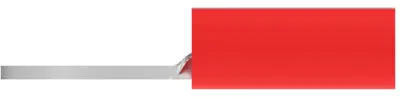

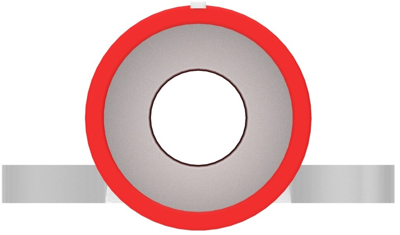

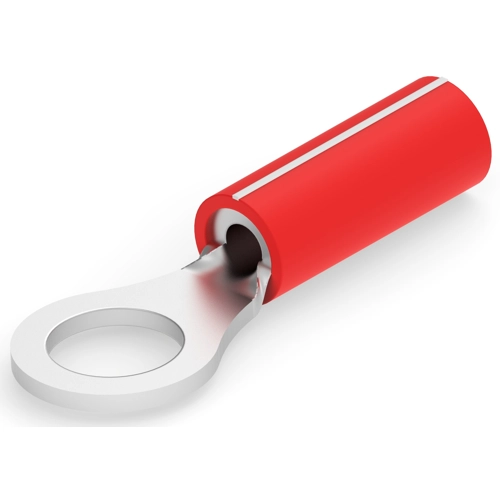

Insulated ring cable lug, 0.8-0.9 mm², AWG 18, 5.2 mm, M5, red, 131648-3
Order No.: 39P3537
EAN: 4099889593822
MPN:
131648-3
Unit Price (€ / pc.)
0.9639 € *
Standard delivery time from the manufacturer is: 43 Weeks
Ring cable lug, 131648-3, TE Connectivity
Shape Description: RING-042, Ring & Spade Stud Size: #10,M5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Stripe Color: White, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 18 AWG, Wire Size: 0,8 -0.9 mm², Wire Size: 1900 CMA, Stud Diameter: 5.2 mm, Tongue Thickness: 0,79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18 | |
| Hole diameter | 5.2 mm | |
| Colour | red | |
| Thread size | M5 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.8-0.9 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
