8-1393292-9 | TE Connectivity
Automotive relays 1 Form A (N/O), 24 V (DC), 430 Ω, 20 A, plug-in connection, 8-1393292-9
Unit Price (€ / pc.)
8.6870 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
8.69 € *
Price list
Quantity
Price per unit*
240 pcs.
8.6870 €
480 pcs.
8.4252 €
*incl. VAT plus shipping costs
**Subject to prior sale

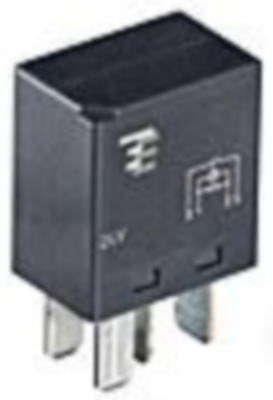

Micro Relay, 8-1393292-9, TE Connectivity
Relay Type: Micro Relay A/VFMA, Contact Switching Load (Min): 1000mA @ 5VDC, Rated Coil Voltage: 24 VDC, Micro Relay Coil Resistance: 430 Ω, Weight: 16 g, Contact Base Material: Ag Alloy, Micro Relay Contact Current Class: 20 – 30 A, Micro Relay Contact Arrangement: 1 Form A (NO), Mounting Type: Plug-In, Width: 15.5 mm, Environmental Category of Protection: RTI, Mounting Brackets: Without
Technical specifications
| Connection | plug-in connection | |
| Contact type | 1 Form A (N/O) | |
| Contact material | Ag alloy | |
| switching current | 20 A | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 430 Ω |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 85364110 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
