1393304-9 | TE Connectivity
Automotive relays 1 Form A (N/O), 12 V (DC), 91 Ω, 70 A, plug-in connection, 1393304-9
Unit Price (€ / pc.)
10.7338 € *
Available: 33 pcs.
Available in 5 Days: 2,046 pcs. - if ordered today
Total Price:
10.73 € *
Price list
Quantity
Price per unit*
1 pcs.
10.7338 €
5 pcs.
10.1745 €
10 pcs.
9.5200 €
25 pcs.
8.6751 €
*incl. VAT plus shipping costs
Subject to prior sale

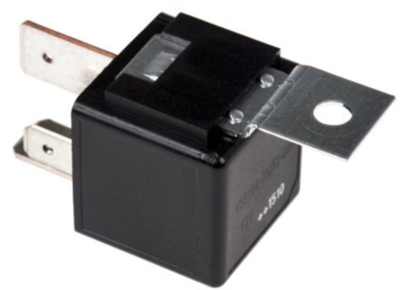

Maxi Relay, 1393304-9, TE Connectivity
Relay Type:Power Relay F7, Contact Switching Load (Min):1000mA @ 5VDC, Rated Coil Voltage:12 VDC, Maxi Relay Coil Magnetic System:Monostable, DC, Maxi Relay Coil Resistance:90 Ω, Weight:38 g, Contact Base Material:Ag Alloy, Maxi Relay Contact Current Class:>50A, Maxi Relay Mounting Type:Plug-In, Height:24.9 mm, Environmental Category of Protection:RT I, Mounting Brackets:With
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 12 V | |
| switching current | 70 A | |
| Coil resistance | 91 Ω | |
| Contact type | 1 Form A (N/O) | |
| Power | 1 W | |
| Connection | plug-in connection | |
| Contact material | Ag alloy |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | PT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
