936348-1 | TE Connectivity
Socket, unequipped, 12 pole, straight, 2 rows, white, 936348-1
Order No.: 35P8651
EAN: 4099889887013
MPN:
936348-1
Unit Price (€ / pc.)
0.6188 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
5 pcs.
0.6188 €
10 pcs.
0.5712 €
25 pcs.
0.5355 €
50 pcs.
0.4879 €
*incl. VAT plus shipping costs
Subject to prior sale

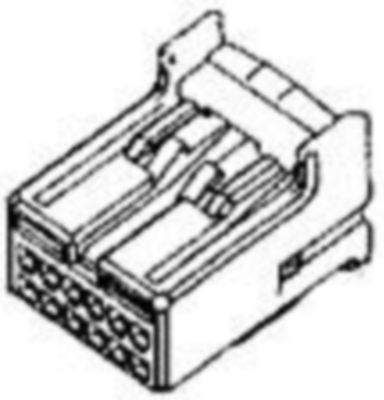

Socket housing, 936348-1, TE Connectivity
Row-to-row spacing: 3 mm, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Strain relief: no, Number of positions: 12, Number of rows: 2, Body material: PBT, Primary product color: white, Mating tab width: 0.63 mm, Terminal position assurance: no, Polarized, Centerline (pitch): 2.2 mm, Height: 19 mm, Length: 15.4 mm, Width: 15.8 mm, Circuit application: signal, Packaging quantity: 200, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.2 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated voltage | 12 V | |
| Type of locking | No | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | white | |
| Pin number | 12 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
