936289-3 | TE Connectivity
Socket, unequipped, 6 pole, straight, 1 row, gray, 936289-3
Order No.: 35P9937
EAN: 4099889891188
MPN:
936289-3
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Leadtime: On Request **

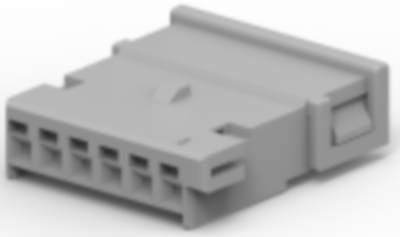

Socket housing, 936289-3, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 6, Number of rows: 1, Body material: PA, Primary product color: gray, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Product height: 19.9 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, 125 °C, Operating temperature range: -40-125 °C, -40-125 °C, Circuit application: signal, UL flammability rating: UL 94V-2, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Number of rows | 1 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | gray | |
| Contact type | socket | |
| Pin number | 6 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
