936289-2 | TE Connectivity
Socket, unequipped, 6 pole, angled, 1 row, black, 936289-2
Unit Price (€ / pc.)
0.4165 € *
Available: 740 pcs.
Available in 5 Days: 2,150 pcs. - if ordered today
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4165 €
10 pcs.
0.3927 €
25 pcs.
0.3689 €
50 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

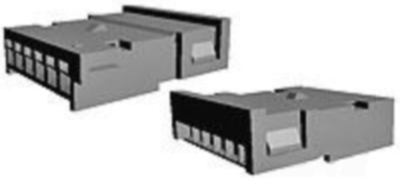

Socket housing, 936289-2, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-board, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 6, Number of rows: 1, Body material: PA, Primary product color: black, Connector code: E, Mating tab width: 0.63 mm, Mating alignment type: polarized, Centerline (pitch): 2.54 mm, Product height: 19.9 mm, Circuit application: signal, Packaging method: bag, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Rated voltage | 12 V | |
| Connection | crimp connection | |
| Pin number | 6 pole | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Grid | 2.54 mm | |
| Version | angled | |
| Number of rows | 1 | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
