936238-2 | TE Connectivity

Plug, unequipped, 4 pole, straight, 1 row, black, 936238-2

Order No.: 36P1579
EAN: 4099889895957
MPN:
936238-2

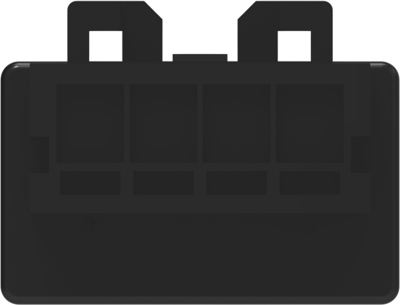

936238-2 TE Connectivity Automotive Power Connectors Image 1
936238-2 TE Connectivity Automotive Power Connectors Image 2

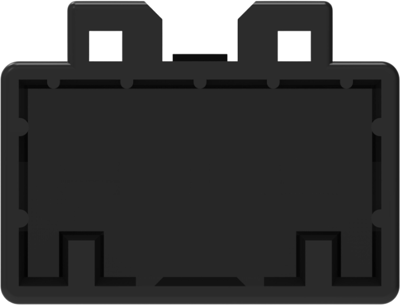

936238-2 TE Connectivity Automotive Power Connectors Image 3

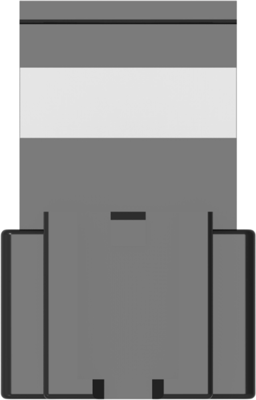

936238-2 TE Connectivity Automotive Power Connectors Image 4

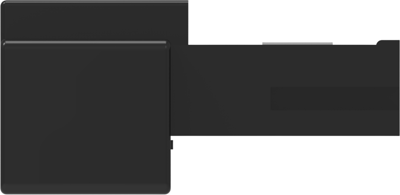

936238-2 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.9520 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
0.95 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9520 €
10 pcs.
0.8687 €
50 pcs.
0.7735 €
100 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug housing, 936238-2, TE Connectivity

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 4, Number of rows: 1, Body material: PBT, Primary product color: black, Mating tab width: 2.28 mm, Mating alignment type: polarized, Centerline (pitch): 4-Product height: 13.3 mm, Circuit application: signal, Packaging method: bag, Serviceable: no, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 24 V
contact surface tin-plated
Pin number 4 pole
Grid 4 mm
Number of rows 1
Contact type plug
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin IN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
