936236-1 | TE Connectivity

Plug, unequipped, 2 pole, straight, 1 row, natural, 936236-1

Order No.: 36P1577
EAN: 4099889895933
MPN:
936236-1
Series: Multilock

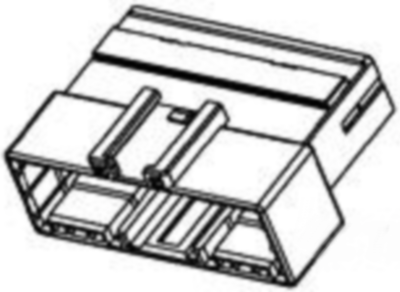

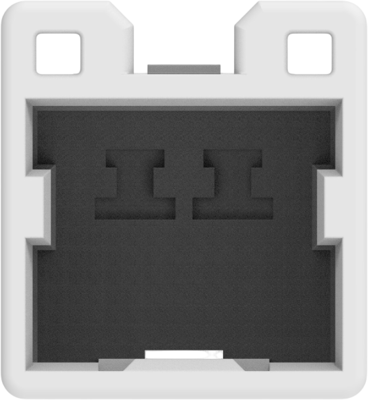

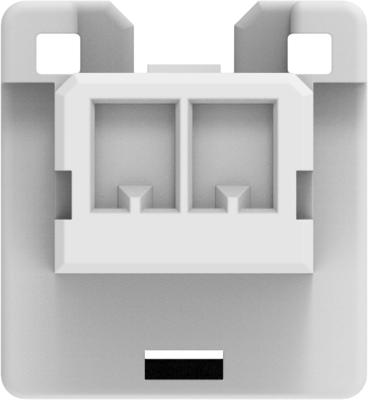

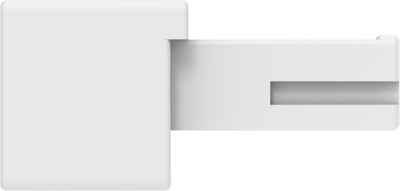

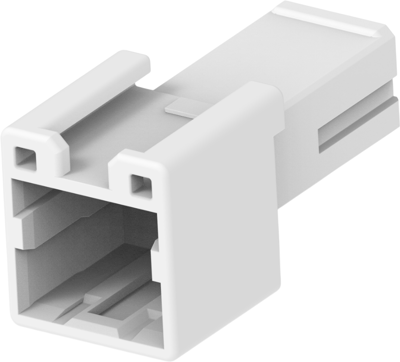

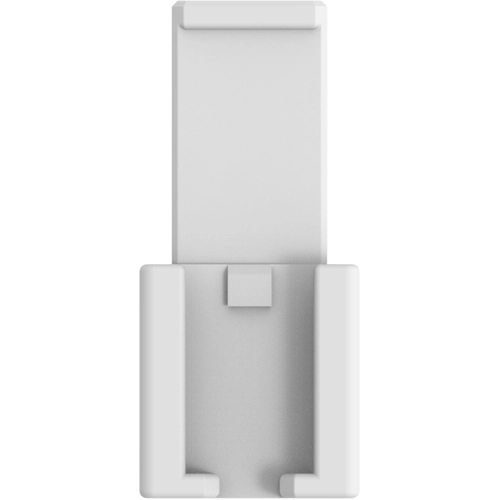

936236-1 TE Connectivity Automotive Power Connectors Image 1
936236-1 TE Connectivity Automotive Power Connectors Image 2
936236-1 TE Connectivity Automotive Power Connectors Image 3
936236-1 TE Connectivity Automotive Power Connectors Image 4
936236-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
0.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.4165 €

Plug housing, 936236-1, TE Connectivity

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Blank cavity position: 0, Number of positions: 2, Number of rows: 1, Body material: PBT, Primary product color: natural, Mating tab width: 2.3 mm, Mating alignment type: polarized, Centerline (pitch): 4-Product height: 16.3 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, Operating temperature range: -40-80 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour natural
Type of locking Yes
Rated voltage 12 V
Pin number 2 pole
Connection crimp connection
Grid 4 mm
Number of rows 1
Contact type plug
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin IN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
