936207-1 | TE Connectivity
Plug, unequipped, 12 pole, straight, 2 rows, natural, 936207-1
Unit Price (€ / pc.)
0.5712 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5712 €
10 pcs.
0.5236 €
25 pcs.
0.4879 €
50 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale

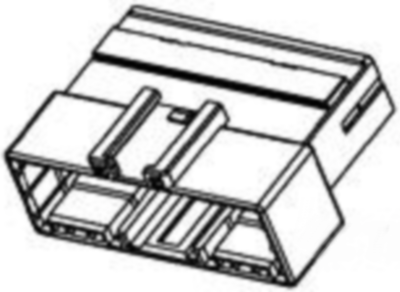

Plug housing, 936207-1, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Blank cavity position: 0, Number of positions: 12, Number of rows: 2, Body material: PBT, Primary product color: natural, Mating tab width: 2.3 mm, Mating alignment type: polarized, Centerline (pitch): 4-Row-to-row spacing: 5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, Operating temperature range: -40-80 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4 mm | |
| contact surface | tin-plated | |
| Contact type | plug | |
| Connection | crimp connection | |
| Rated voltage | 12 V | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 12 pole | |
| Additional parts | unequipped | |
| Colour | natural | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
