936133-1 | TE Connectivity

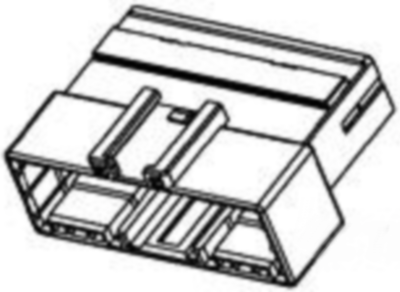

Plug, unequipped, 26 pole, straight, 2 rows, natural, 936133-1
Unit Price (€ / pc.)
1.3090 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
5 pcs.
1.3090 €
10 pcs.
1.2138 €
25 pcs.
1.1305 €
50 pcs.
1.0234 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 936133-1, TE Connectivity
Row-to-row spacing: 5 mm, Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Blank cavity position: 0, Number of positions: 26, Number of rows: 2, Cable exit angle: 180°, Body material: PBT, Primary product color: natural, Mating tab width: 2.3 mm, Mounting feature: without, Polarized, Centerline (pitch): 4-Height: 16.7 mm, Length: 57.4 mm, Width: 34 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, Operating temperature range: -40-80 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: bag, Packaging quantity: 110, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4 mm | |
| Contact type | plug | |
| Version | straight | |
| Rated voltage | 14 V | |
| Type of locking | No | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | natural | |
| Pin number | 26 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
