936129-1 | TE Connectivity
Plug, unequipped, 10 pole, straight, 2 rows, natural, 936129-1
Order No.: 36P1561
EAN: 4099889895773
MPN:
936129-1
Unit Price (€ / pc.)
0.5712 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

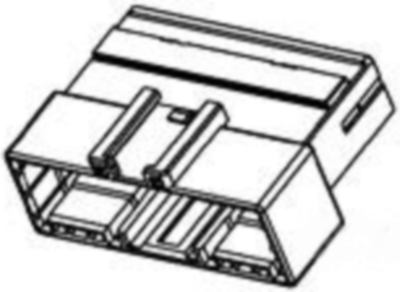

Plug housing, 936129-1, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Primary locking feature: integrated in housing, Blank cavity position: 0, Number of positions: 10, Number of rows: 2, Body material: PBT, Primary product color: natural, Mating tab width: 2.3 mm, Mating alignment type: polarized, Centerline (pitch): 4-Row-to-row spacing: 5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, Operating temperature range: -40-80 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: bag, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 2 | |
| Version | straight | |
| Additional parts | unequipped | |
| Colour | natural | |
| Contact type | plug | |
| Rated voltage | 12 V | |
| Pin number | 10 pole | |
| Grid | 4 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
