936095-1 | TE Connectivity
Socket, unequipped, 20 pole, straight, 2 rows, natural, 936095-1
Unit Price (€ / pc.)
0.8330 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
4.17 € *
Price list
Quantity
Price per unit*
5 pcs.
0.8330 €
10 pcs.
0.7735 €
25 pcs.
0.7140 €
50 pcs.
0.6545 €
*incl. VAT plus shipping costs
Subject to prior sale

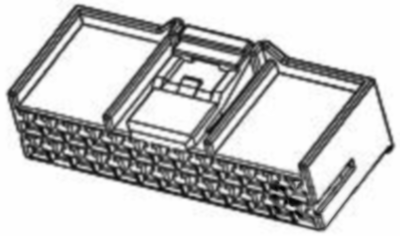

Socket housing, 936095-1, TE Connectivity
Row-to-row spacing: 5 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Blank cavity position: 0, Number of positions: 20, Number of rows: 2, Cable exit angle: 180°, Body material: PBT, Primary product color: natural, Mating tab width: 2.3 mm, Mounting feature: without, Polarized, Centerline (pitch): 4-Height: 15.8 mm, Length: 42 mm, Width: 21 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, Operating temperature range: -40-80 °C, Circuit application: signal, UL flammability rating: UL 94-HB, Packaging method: bag, Packaging quantity: 270, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated voltage | 12 V | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | natural | |
| Pin number | 20 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
