936060-1 | TE Connectivity

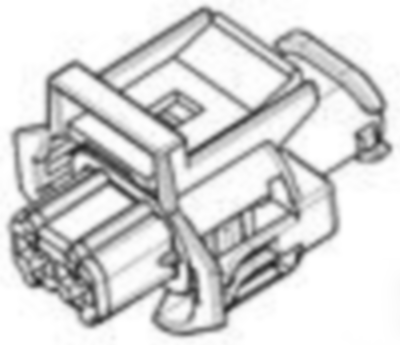

Socket, unequipped, 3 pole, straight, 1 row, black, 936060-1
Order No.: 36P2510
EAN: 4099889897647
MPN:
936060-1
Unit Price (€ / pc.)
2.4514 € *
Available in 5 Days: 265 pcs. - if ordered today
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4514 €
10 pcs.
2.2729 €
25 pcs.
2.1182 €
50 pcs.
1.9278 €
*incl. VAT plus shipping costs
Subject to prior sale
Automotive housing, 936060-1, TE Connectivity
Connector system: wire-to-board, wire-to-device, Sealable: yes, Hybrid connector: no, Strain relief: no, Number of positions: 3, Number of rows: 1, Body material: PA GF, Primary product color: black, Mating tab width: 2.8 mm, Terminal position assurance: no, Polarized, Centerline (pitch): 5 mm, Height: 30.5 mm, Length: 30 mm, Width: 20.1 mm, Circuit application: signal, Packaging method: bag, Packaging quantity: 150, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Contact type | socket | |
| Grid | 5 mm | |
| Pin number | 3 pole | |
| Rated voltage | 12 V | |
| Additional parts | unequipped | |
| Type of locking | No | |
| Connection | crimp connection | |
| Colour | black | |
| Version | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
