9-1418416-9 | TE Connectivity

Socket, unequipped, 48 pole, straight, 4 rows, black, 9-1418416-9

Order No.: 35P9943
EAN: 4099889891225
MPN:
9-1418416-9

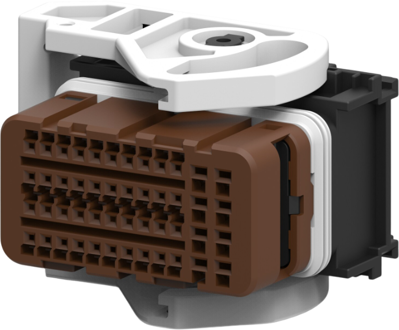

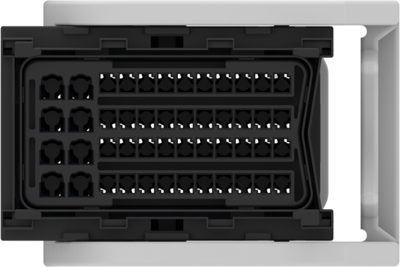

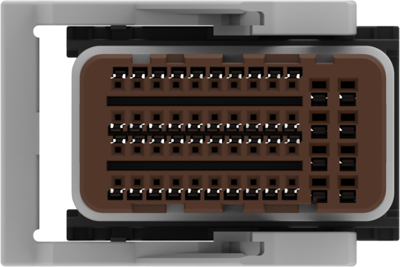

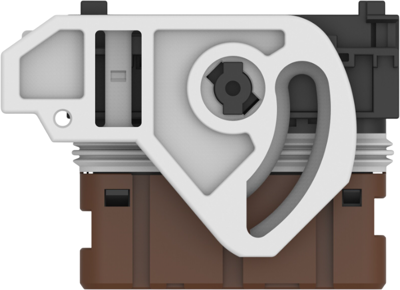

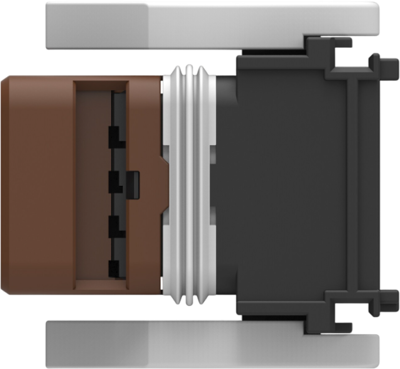

9-1418416-9 TE Connectivity Automotive Power Connectors Image 1
9-1418416-9 TE Connectivity Automotive Power Connectors Image 2
9-1418416-9 TE Connectivity Automotive Power Connectors Image 3
9-1418416-9 TE Connectivity Automotive Power Connectors Image 4
9-1418416-9 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
5.2955 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
2,563.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
484 pcs.
5.2955 €

Socket housing, 9-1418416-9, TE Connectivity

Connector & housing type: housing for female terminals, Connector system: wire-to-board, wire-to-device, Sealable: no, Hybrid connector: yes, Primary locking feature: integrated in housing, Number of positions: 48, Number of rows: 4, Body material: PBT GF, Primary product color: black, Connector code: 3, Mating tab width: 0.64 mm, 1.5 mm, Mating alignment type: polarized, Centerline (pitch): 2.5 mm, 3.5 mm, 3.7 mm, Row-to-row spacing: 4.2 mm, Circuit application: signal, Packaging method: box, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 12 V
Pin number 48 pole
Connection crimp connection
Grid 2.5 mm
Number of rows 4
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
