85205-1 | TE Connectivity

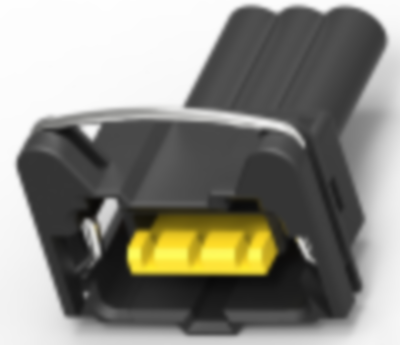

Socket, unequipped, 3 pole, straight, 1 row, black, 85205-1
Order No.: 36P2845
EAN: 4099889898859
MPN:
85205-1
Unit Price (€ / pc.)
0.7973 € *
Available in 5 Days: 1,100 pcs. - if ordered today
Socket housing, 85205-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: integrated in housing, Number of positions: 3, Number of rows: 1, Body material: PBT GF, Primary product color: black, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Product height: 24 mm, Circuit application: signal, Packaging method: bag, Serviceable: no, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Contact type | socket | |
| Additional parts | unequipped | |
| Colour | black | |
| Number of rows | 1 | |
| Connection | crimp connection | |
| Pin number | 3 pole | |
| Version | straight | |
| Type of locking | Yes | |
| Rated voltage | 14 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
