85113-1 | TE Connectivity

Socket, unequipped, 15 pole, straight, 2 rows, white, 85113-1

Order No.: 36P1555
EAN: 4099889895759
MPN:
85113-1

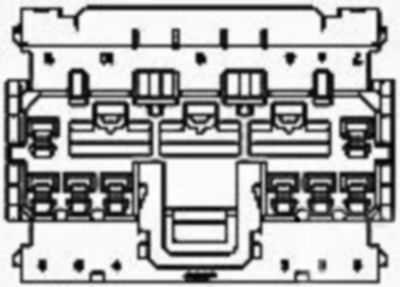

85113-1 TE Connectivity Automotive Power Connectors Image 1

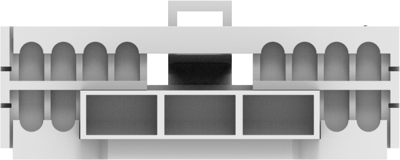

85113-1 TE Connectivity Automotive Power Connectors Image 2

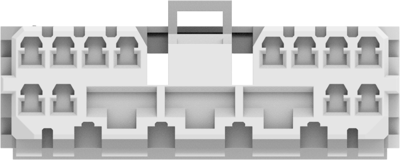

85113-1 TE Connectivity Automotive Power Connectors Image 3

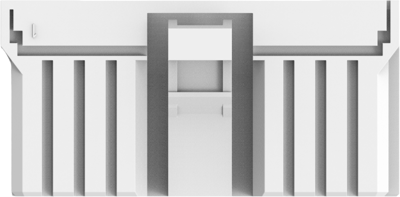

85113-1 TE Connectivity Automotive Power Connectors Image 4

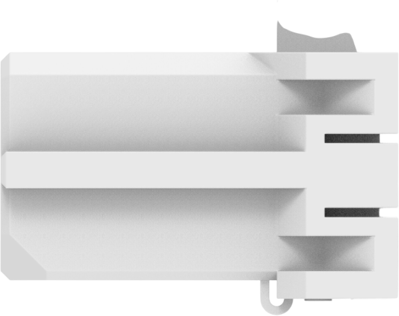

85113-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.6783 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
0.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.6783 €

Socket housing, 85113-1, TE Connectivity

Row-to-row spacing: 5.2 mm, Connector system: wire-to-wire, Sealable: no, Hybrid connector: yes, Strain relief: no, Number of positions: 15, Number of rows: 2, Body material: PBT, Primary product color: white, Mating tab width: 1.8 mm, 6.3 mm, Terminal position assurance: no, Polarized, Height: 13.4 mm, Length: 43.8 mm, Width: 24.3 mm, Circuit application: power & signal, Packaging method: bag, Packaging quantity: 150, Connector position assurance capable: no

Technical specifications
Version straight
Colour white
Type of locking No
Rated voltage 12 V
Pin number 15 pole
Connection crimp connection
Number of rows 2
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin IN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
