85111-1 | TE Connectivity

Socket, unequipped, 13 pole, straight, 2 rows, white, 85111-1

Order No.: 36P1554
EAN: 4099889895742
MPN:
85111-1
85111-1 TE Connectivity Automotive Power Connectors Image 1

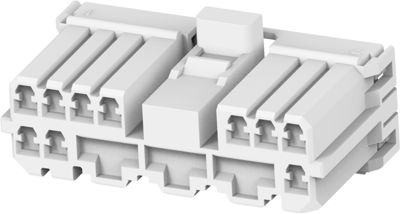

85111-1 TE Connectivity Automotive Power Connectors Image 2

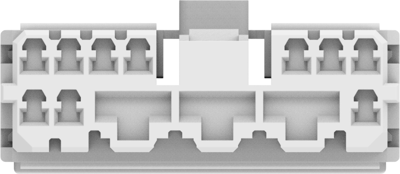

85111-1 TE Connectivity Automotive Power Connectors Image 3

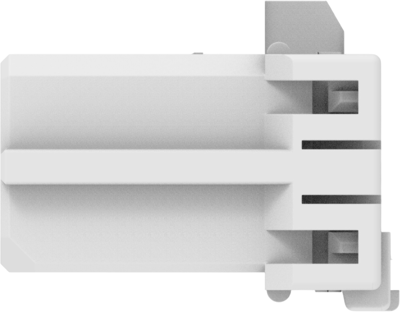

85111-1 TE Connectivity Automotive Power Connectors Image 4

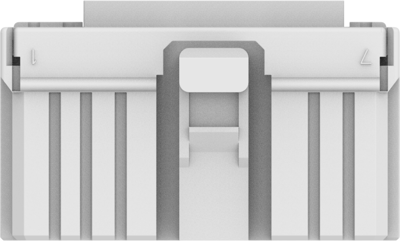

85111-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
0.7616 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
0.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.7616 €

Automotive housing, 85111-1, TE Connectivity

Connector system: wire-to-wire, Sealable: no, Hybrid connector: yes, Number of positions: 13, Number of rows: 2, Body material: PBT, Primary product color: white, Mating tab width: 1.8 mm, 6.3 mm, Mating alignment type: polarized, Row-to-row spacing: 5.2 mm, Circuit application: power & signal, Packaging method: bag, Connector position assurance capable: no

Technical specifications
Version straight
Colour white
Type of locking No
Rated voltage 12 V
Pin number 13 pole
Number of rows 2
Contact type socket
Additional parts unequipped
Logistics
Customs tariff number 85472000
Country of origin IN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
