7-967570-4 | TE Connectivity

Plug, unequipped, 2 pole, straight, 1 row, black, 7-967570-4

Order No.: 35P9977
EAN: 4099889891539
MPN:
7-967570-4
Series: MQS

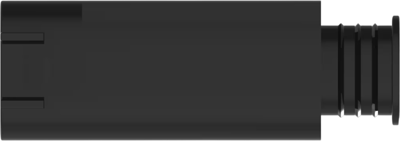

7-967570-4 TE Connectivity Automotive Power Connectors Image 1

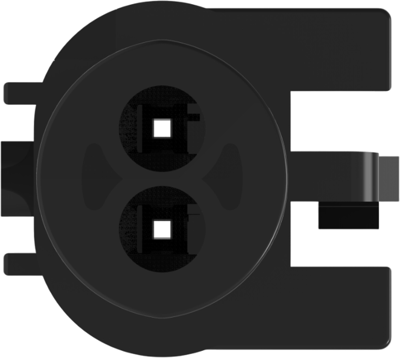

7-967570-4 TE Connectivity Automotive Power Connectors Image 2
7-967570-4 TE Connectivity Automotive Power Connectors Image 3

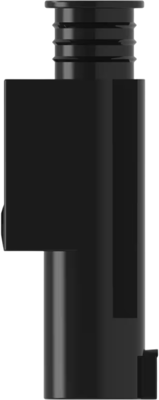

7-967570-4 TE Connectivity Automotive Power Connectors Image 4

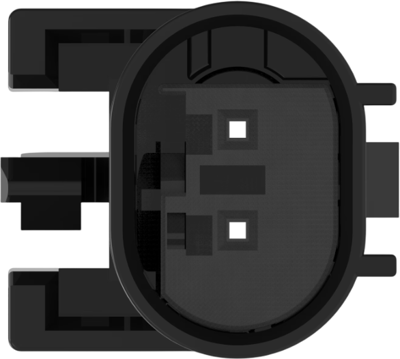

7-967570-4 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.4633 € *
Available in 5 Days: 830 pcs. - if ordered today
Total Price:
2.46 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4633 €
10 pcs.
2.2372 €
50 pcs.
2.0111 €
100 pcs.
1.8088 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug housing, 7-967570-4, TE Connectivity

Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 2, Number of rows: 1, Operating voltage: 14 VDC, Nominal voltage architecture: 12 V, Body material: PBT GF, Primary product color: black, Connector code: A, Mating tab width: 0.63 mm, Strain relief: no, Centerline (pitch): 2.54 mm, Product height: 11.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, Serviceable: yes, Connector position assurance capable: no

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 14 V
Pin number 2 pole
Connection crimp connection
Grid 4 mm
Number of rows 1
Rated current 7.5 A
Contact type plug
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
