6-1718323-1 | TE Connectivity

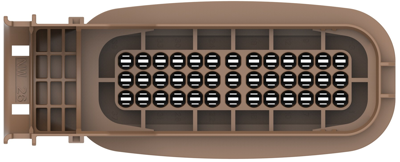

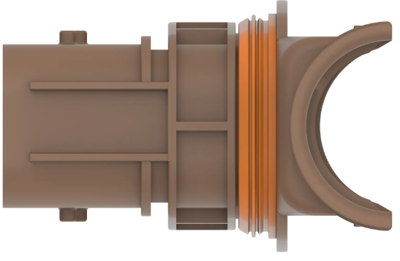

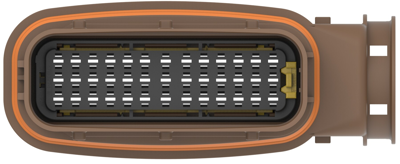

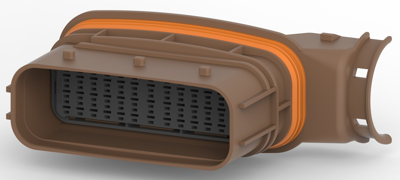

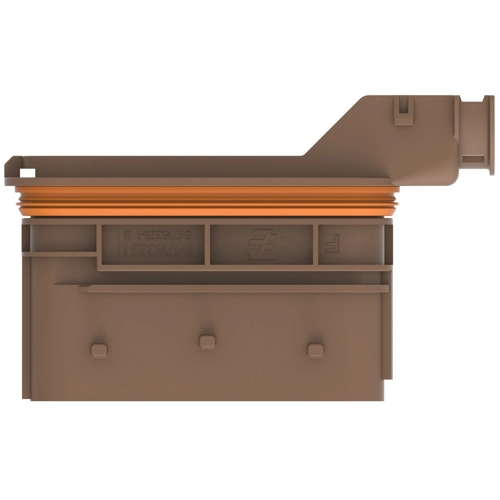

Plug, unequipped, 39 pole, angled, 3 rows, brown, 6-1718323-1
Order No.: 36P4181
EAN: 4099889905434
MPN:
6-1718323-1
Unit Price (€ / pc.)
10.9361 € *
Available: 0 pcs.
Available in 5 Days: 35 pcs.
Leadtime: 1 Week **
Total Price:
10.94 € *
Price list
Quantity
Price per unit*
10 pcs.
10.9361 €
45 pcs.
9.0559 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug housing, 6-1718323-1, TE Connectivity
Connector & housing type: housing for male terminals, Connector system: wire-to-wire, Sealable: yes, Hybrid connector: no, Primary locking feature: on the terminal, Number of positions: 39, Number of rows: 3, Operating voltage: 36 VDC, Nominal voltage architecture: 12 V, 24 V, Body material: PBT GF, Primary product color: brown, Mating tab width: 2.8 mm, Mating alignment type: polarized, Centerline (pitch): 5 mm, Row-to-row spacing: 5.5 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, 110 °C, 120 °C, Operating temperature range: -40-120 °C, Circuit application: signal, UL flammability rating: UL 94HB, Packaging method: package, Serviceable: yes, Connector position assurance capable: no
Technical specifications
| Connection | crimp connection | |
| Number of rows | 3 | |
| Version | angled | |
| Additional parts | unequipped | |
| Colour | brown | |
| Contact type | plug | |
| Rated voltage | 36 V | |
| Rated current | 40 A | |
| Pin number | 39 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
