4-1564516-1 | TE Connectivity

Plug, 10 pole, straight, 2 rows, blue, 4-1564516-1

Order No.: 71P8593
EAN: 4099889458503
MPN:
4-1564516-1

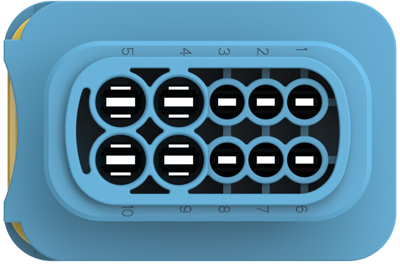

4-1564516-1 TE Connectivity Automotive Power Connectors Image 1

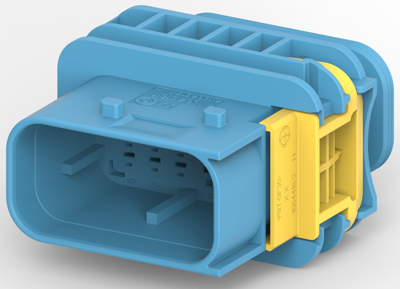

4-1564516-1 TE Connectivity Automotive Power Connectors Image 2

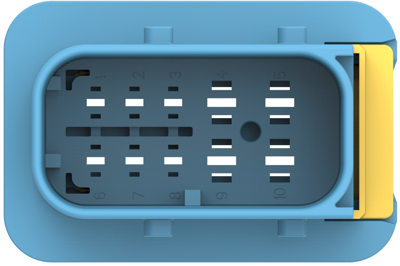

4-1564516-1 TE Connectivity Automotive Power Connectors Image 3

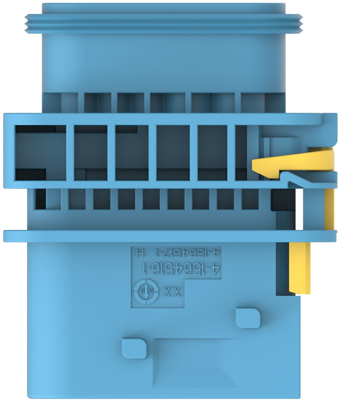

4-1564516-1 TE Connectivity Automotive Power Connectors Image 4

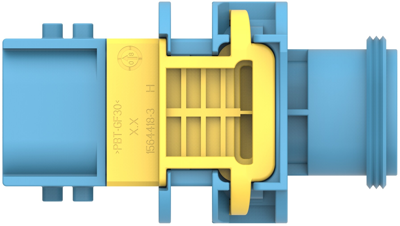

4-1564516-1 TE Connectivity Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.1535 € *
Available in 5 Days: 2,192 pcs. - if ordered today
Total Price:
3.15 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1535 €
10 pcs.
2.9274 €
25 pcs.
2.7370 €
50 pcs.
2.4871 €
*incl. VAT plus shipping costs
Subject to prior sale

Rectangular plug housing, 4-1564516-1, TE Connectivity

Housing for male terminal, Wire-to-Wire, 10 Position, 4 mm/6 mm Centerline, Sealable, Blue.

Technical specifications
Filter Property Value
Grid 4 mm
Pin number 10 pole
Colour blue
Contact type tab
Rated current 40 A
Version straight
Connection crimp connection
Number of rows 2
Rated voltage 60 V
Type of locking Yes
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
