368503-1 | TE Connectivity

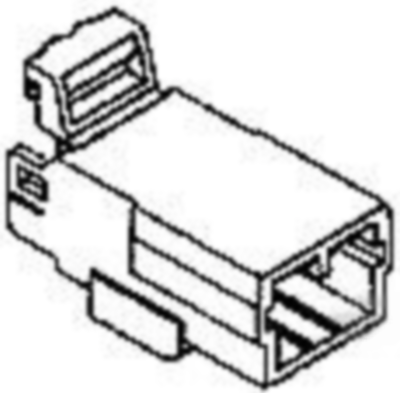

Socket, unequipped, 3 pole, straight, 1 row, natural, 368503-1
Order No.: 36P1496
EAN: 4099889895261
MPN:
368503-1
Unit Price (€ / pc.)
0.4046 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
2.02 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4046 €
10 pcs.
0.3689 €
25 pcs.
0.3451 €
50 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 368503-1, TE Connectivity
Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 3, Number of rows: 1, Primary product color: natural, Mating tab width: 1.8 mm, Strain relief: no, Centerline (pitch): 3.5 mm, Product height: 18.6 mm, Operating temperature (max): 70 °C, 75 °C, 80 °C, 85 °C, 90 °C, 100 °C, 105 °C, Operating temperature range: -30-105 °C, Circuit application: signal, Packaging method: bag/box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated current | 14 A | |
| Rated voltage | 12 V | |
| Type of locking | No | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 3 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
