368191-2 | TE Connectivity

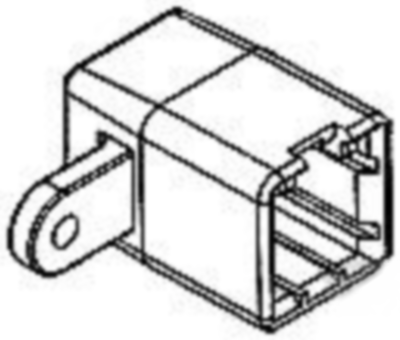

Socket, unequipped, 8 pole, straight, 2 rows, black, 368191-2
Order No.: 36P1446
EAN: 4099889894868
MPN:
368191-2
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
2.74 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5474 €
10 pcs.
0.4998 €
25 pcs.
0.4641 €
50 pcs.
0.4284 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, 368191-2, TE Connectivity
Row-to-row spacing: 5.2 mm, Connector & housing type: housing for female terminals, Connector system: wire-to-wire, Sealable: no, Hybrid connector: no, Number of positions: 8, Number of rows: 2, Body material: PBT GF, Primary product color: black, Mating tab width: 1 mm, Mounting feature: without, Polarized, Centerline (pitch): 2.5 mm, Height: 27 mm, Length: 34 mm, Width: 18 mm, Circuit application: signal, Packaging method: bag, Packaging quantity: 200, Connector position assurance capable: no
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Contact type | socket | |
| Version | straight | |
| Rated current | 5 A | |
| Rated voltage | 12 V | |
| Type of locking | No | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | black | |
| Pin number | 8 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
